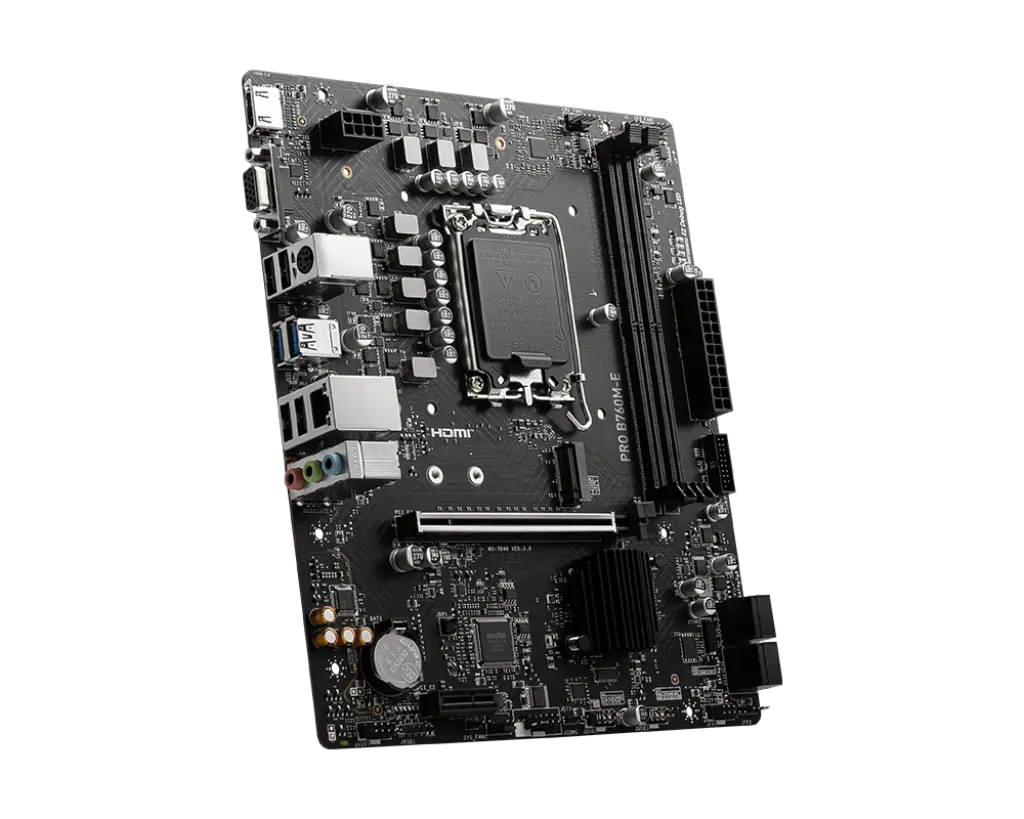

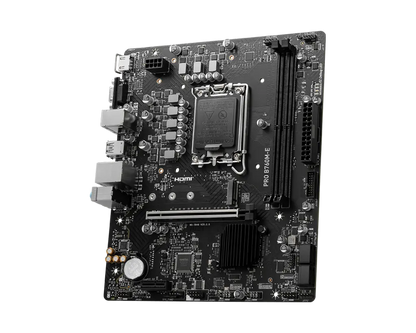

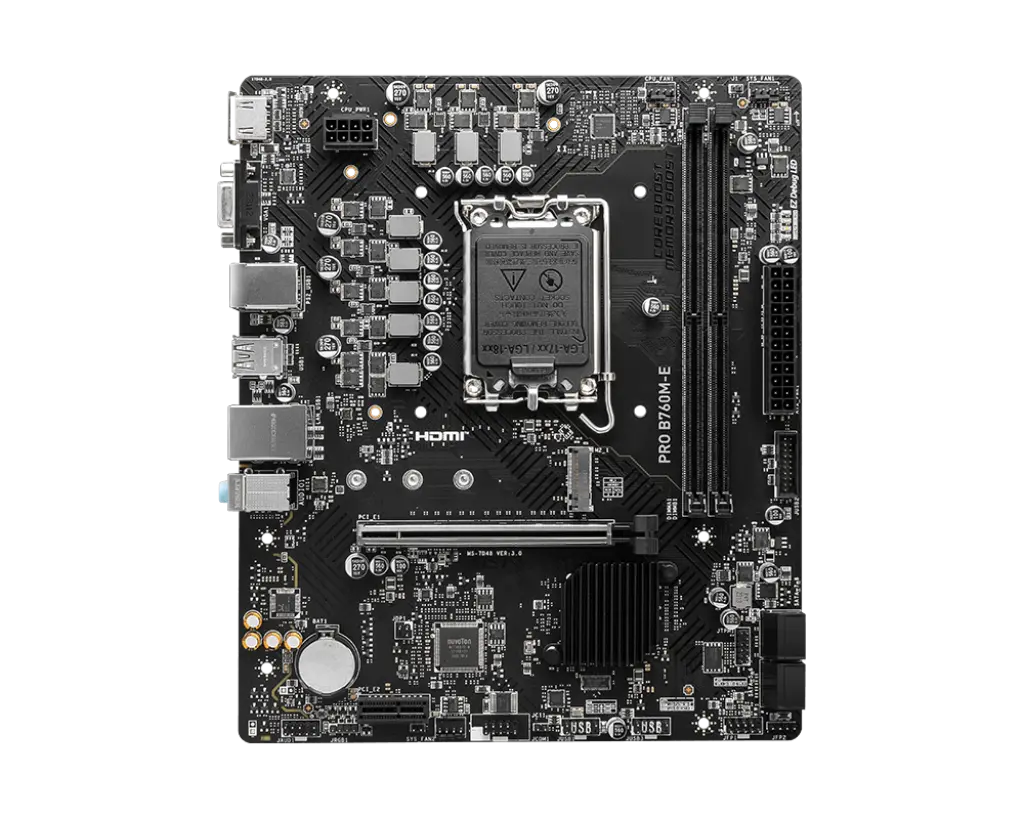

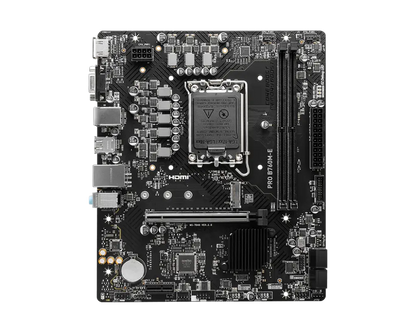

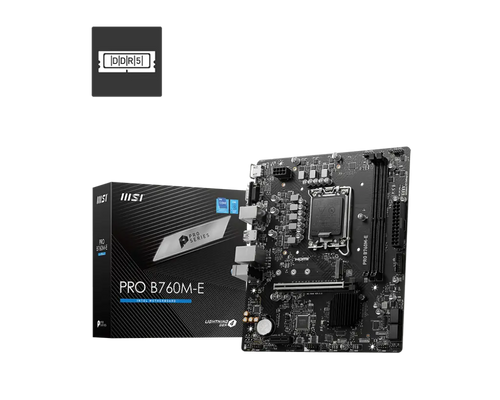

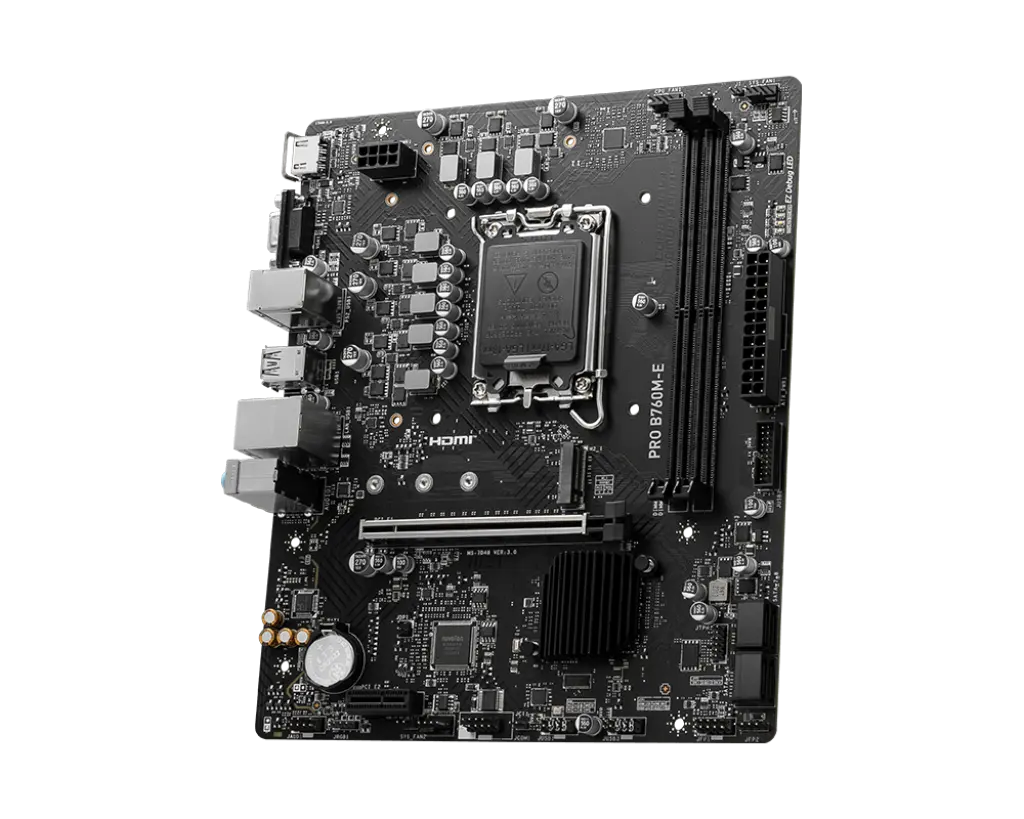

MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Socket Micro-ATX Motherboard
MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Socket Micro-ATX Motherboard
Couldn't load pickup availability
↩️ Returns & Refunds
30-day return window on eligible items (from delivery date).
- Item must be unused, in original packaging with all tags/accessories.
- GST invoice required for processing.
- Exclusions: hygiene/consumable items, used or physically damaged items, made-to-order goods.
- Refunds go to the original payment method after QC (typically 3–7 business days).
To start a return, contact us with your Order ID and clear photos of the item/box.
🛡 Brand Warranty
Official manufacturer warranty applies to eligible products. Coverage & duration follow the brand’s policy (typically 6–24 months).
- Keep your GST invoice — required for warranty service.
- Contact the brand’s authorized service centre or message us; we’ll guide you.
- Warranty covers manufacturing defects only (excludes liquid/physical damage, wear & tear, unauthorized repairs).
- Serial/IMEI/QR labels must be intact; include box accessories if asked.
For exact terms, please refer to the brand’s warranty card inside the box.
MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Socket Micro-ATX Motherboard
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
| Model | MSI PRO B760M-E DDR5 Motherboard |
| CPU Support |
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1700 |
| Chipset | Intel B760 Chipset |
| Form Factor | Micro-ATX |
| Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Audio |
Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| LAN | Realtek RTL8111H Gigabit LAN |
| ONBOARD GRAPHICS |
1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| LAN | 1x Realtek RTL8111H Gigabit LAN |
| Slot |
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| INTERNAL IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |

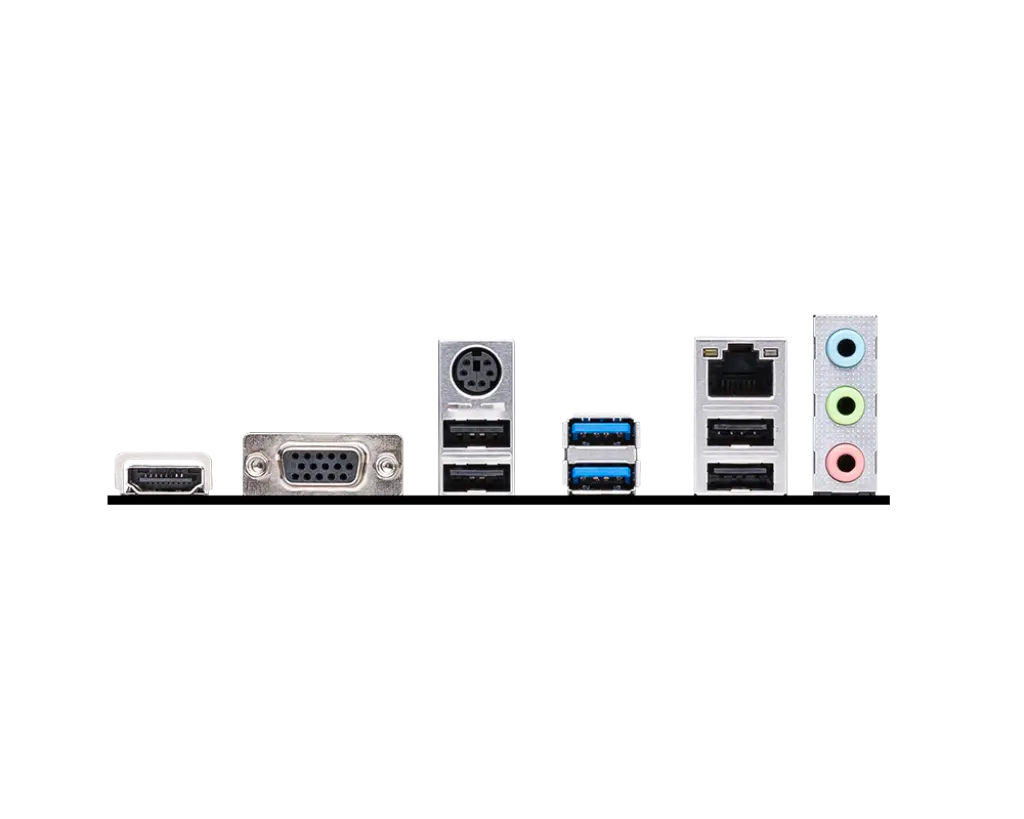

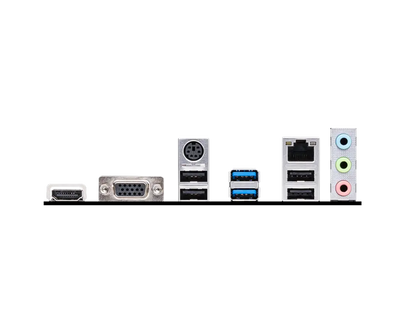

| BACK PANEL PORTS |
HDMI
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0
|
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 3 Years Brand Warranty |
| Package Contents | Motherboard European Regulatory Notice Quick Installation Guide M.2 Screw / Standoff Set SATA Cable I/O Shield |
