Kingston Server Premier 16GB DDR5 ECC RAM 5600 MHz DIMM Memory Workstation NAS
🚀 High-Speed Performance: 16GB DDR5 ECC UDIMM with blazing-fast 5600MT/s transfer rate for next-gen server and workstation workloads.
🧠 Error-Correcting Code (ECC): Built-in on-die ECC ensures enhanced data integrity and system reliability—ideal for mission-critical applications.
🔧 JEDEC Standard Timing: Programmed to CL46 latency (46-45-45) at 1.1V for optimal compatibility and stability across platforms.
🛡️ Robust Build Quality: Features 288-pin gold contact fingers and UL 94V-0 rated components for durability and long-term performance.
🌡️ Wide Operating Range: Reliable operation from 0°C to +95°C, making it suitable for demanding environments.
🔄 Advanced Features: Includes 32 internal banks, sideband access via I3C/I2C, and hard/soft post-package repair for enhanced module resilience

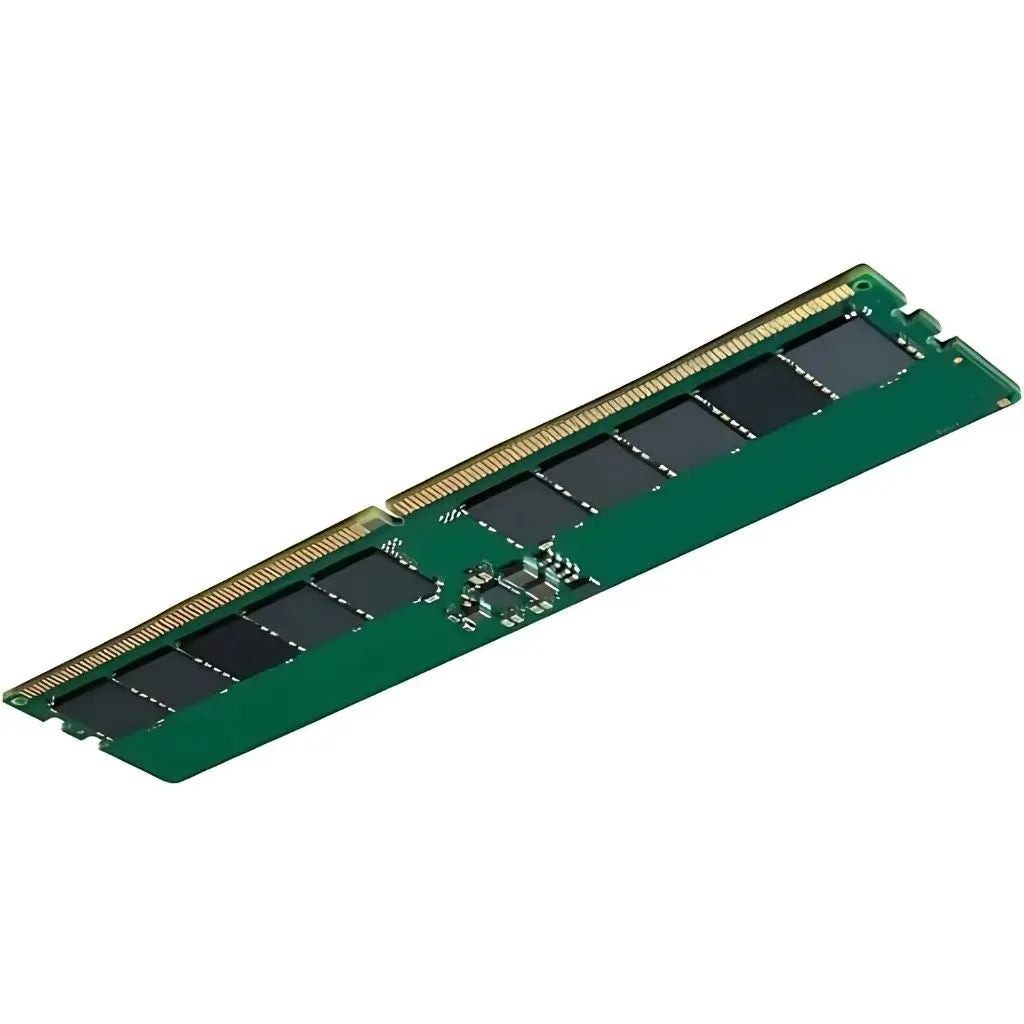

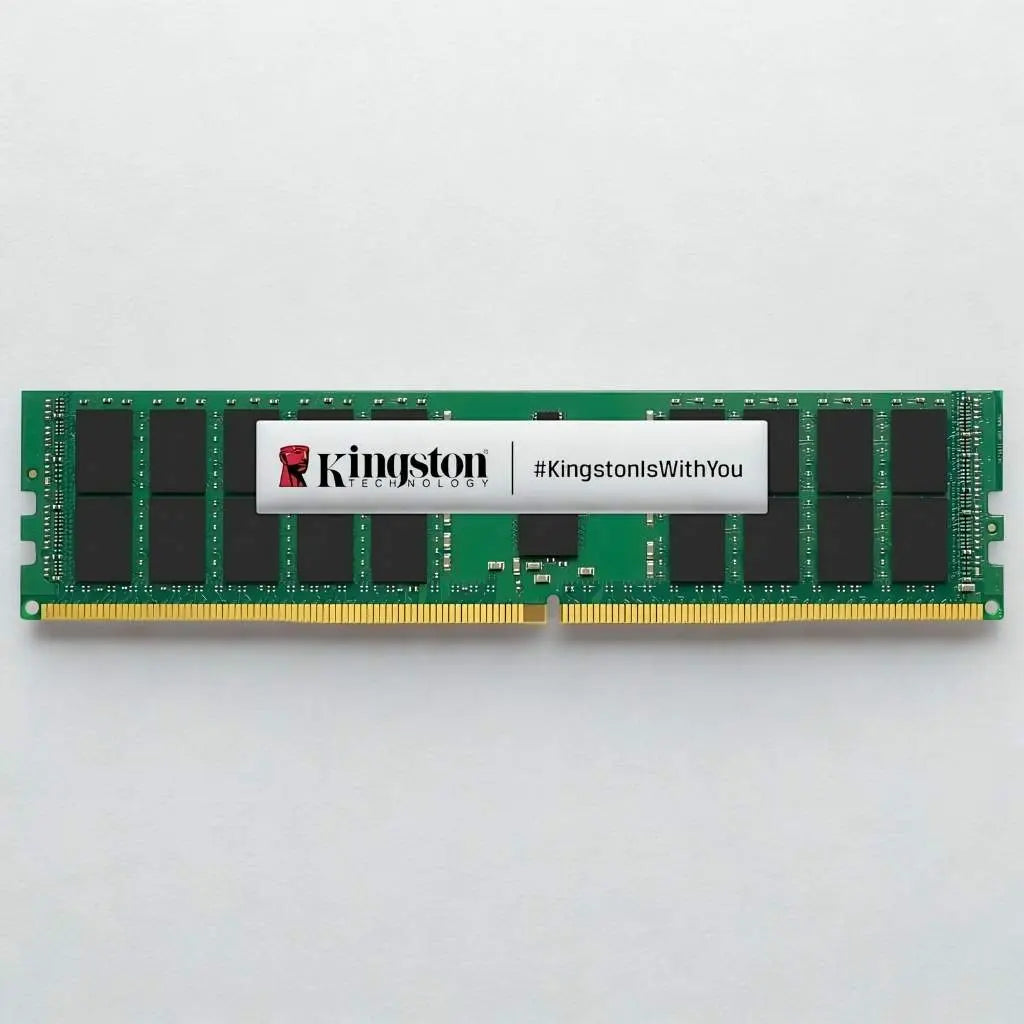

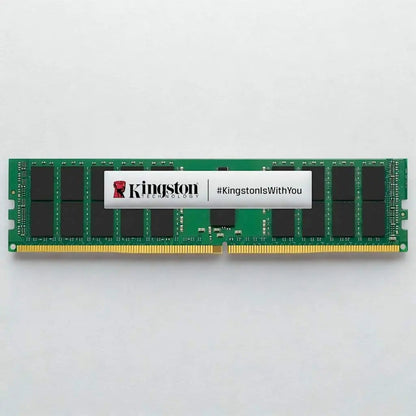

Kingston’s KSM56E46BS8KM-16HA is a high-performance 16GB DDR5 ECC Registered DIMM designed for enterprise-grade servers and workstations. Operating at 5600MHz with JEDEC-standard latency, it ensures reliable data integrity through on-die ECC and x72-bit architecture. Built with Hynix A-Die DRAM and compliant with RoHS standards, this module delivers speed, stability, and durability for demanding environments.
Product Specification:
| Specification | Details |
| Model Part Number | KSM56E46BS8KM-16HA |
| Capacity | 16GB |
| Organization | 2G x 72-bit |
| DRAM Type | DDR5 SDRAM |
| Speed | PC5-5600 |
| CAS Latency (CL) | CL46 |
| JEDEC Timing | 46-45-45 |
| Form Factor | 288-Pin DIMM |
| Rank | 1Rx8 |
| DRAM Manufacturer | Hynix (A-Die) |
| DRAM Components | Ten 2G x 8-bit FBGA |
| Voltage | VDD = 1.1V, VDDQ = 1.1V, VPP = 1.8V, VDDSPD = 1.8–2.0V |
| Row Cycle Time (tRCmin) | 48 ns |
| Refresh Command Time (tRFCmin) | 295 ns |
| Row Active Time (tRASmin) | 32 ns |
| Row Precharge Time (tRPmin) | 16 ns |
| ECC Support | Yes (On-Die ECC and x72 ECC with 2 independent I/O subchannels) |
| Banks | 32 internal banks |
| Repair Features | Hard/Soft Post Package Repair |
| Sideband Access | I3C/I2C |
| PCB Height | 1.23” (31.25 mm) |
| Contact Material | Gold fingers |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
| Compliance | RoHS Compliant, Halogen-Free |
| UL Rating | 94 V - 0 |
| Country of Origin | China |
| Warranty | Lifetime Warranty |
