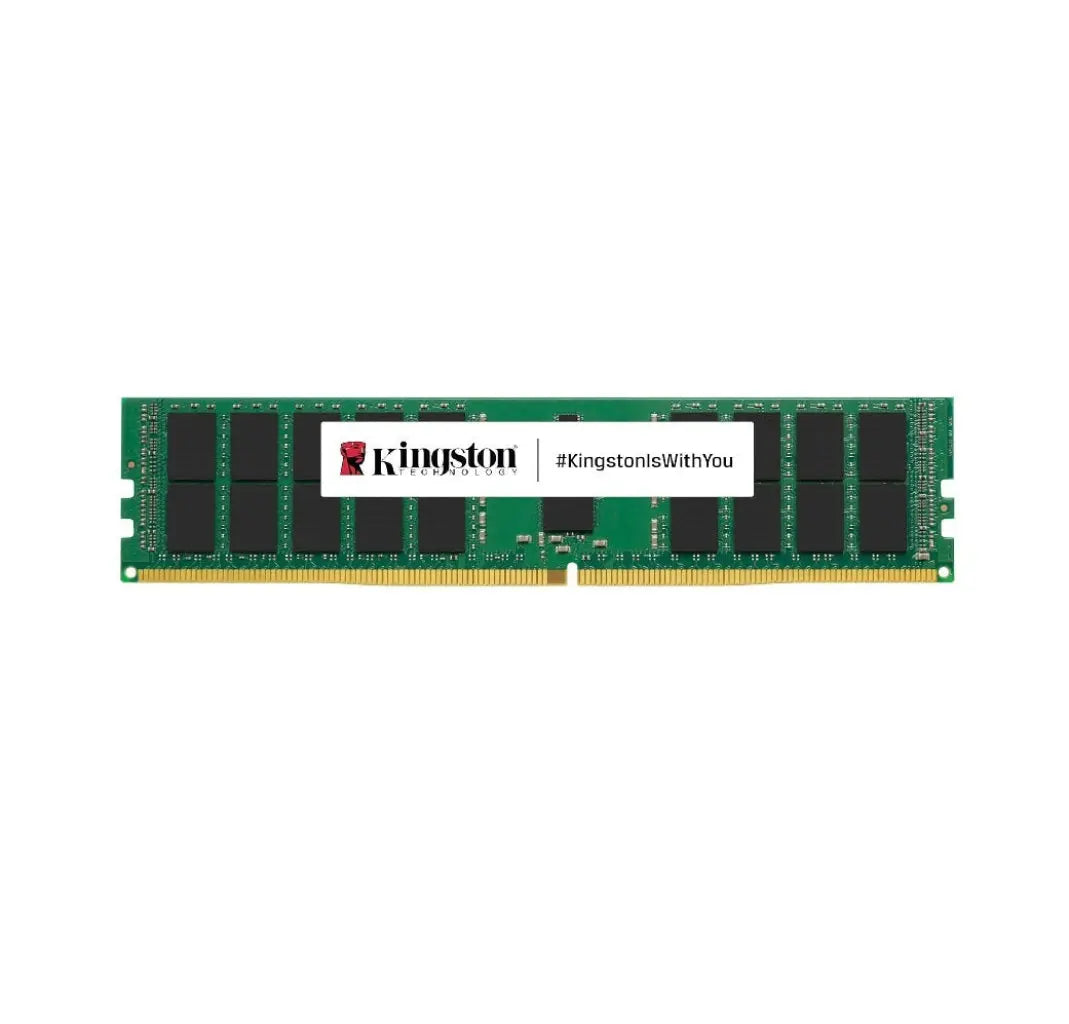

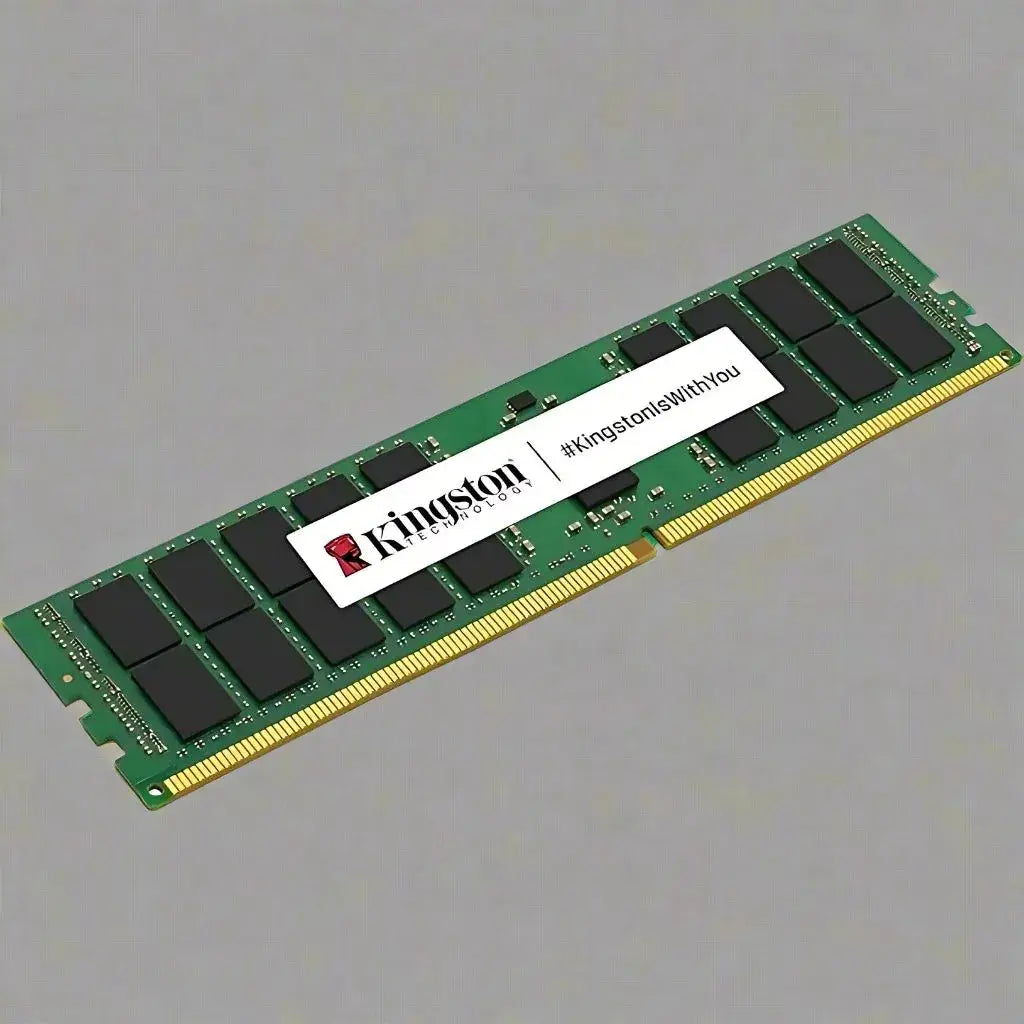

Kingston Premier 8GB DDR4 3200 Mhz ECC CL22 288 Pin RAM DIMM Workstation Server NAS Memory
🧠 8GB Capacity – Ideal for entry-level servers and workstations
⚡ DDR4-3200 Speed – Delivers high-performance data throughput
🛡️ ECC Functionality – Ensures data integrity with error correction
🔧 Unbuffered DIMM (1Rx8) – Compatible with a wide range of server platforms
🌡️ Integrated Thermal Sensor – Enables intelligent system monitoring
🧬 JEDEC Standard Timing – CL22 latency with 22-22-22 timings at 1.2V
Upgrade your server’s reliability and responsiveness with the Kingston KSM32ES8/8HD 8GB DDR4 ECC Unbuffered DIMM. Designed for mission-critical environments, this module delivers 3200MT/s speed and CL22 latency, ensuring smooth multitasking and robust data protection through ECC technology. Its single-rank 1Rx8 configuration, low-voltage operation, and JEDEC-compliant design make it a dependable choice for modern server and workstation builds.
Product Specification:
| Specification | Details |
| Model | KSM32ES8/8HD |
| Capacity | 8GB |
| Organization | 1Rx8, 1G x 72-bit |
| Memory Type | DDR4 SDRAM |
| Speed | 3200 MT/s |
| CAS Latency (CL) | 22 cycles |
| Voltage | 1.2V (VDD, VDDQ), 2.5V (VPP), 2.2V–3.6V (VDDSPD) |
| Form Factor | 288-Pin DIMM |
| ECC Support | Yes |
| Components | Nine 1G x 8-bit FBGA |
| SPD Timing | JEDEC standard 22-22-22 |
| Row Cycle Time (tRCmin) | 45.75ns (min) |
| Refresh Command Time (tRFCmin) | 350ns (min) |
| Row Active Time (tRASmin) | 32ns (min) |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Power Features | LPASR, DBI, On-die VREFDQ, ODT |
| Burst Length | Fixed BC4 and BL8, Selectable BC4/BL8 OTF |
| Topology | Fly-by topology |
| PCB Height | 1.23” (31.25mm) |
| Compliance | RoHS Compliant, Halogen-Free |
| Additional Features | SPD EEPROM, Temperature Sensor, Terminated Control Bus |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime Warranty by Kingston |
