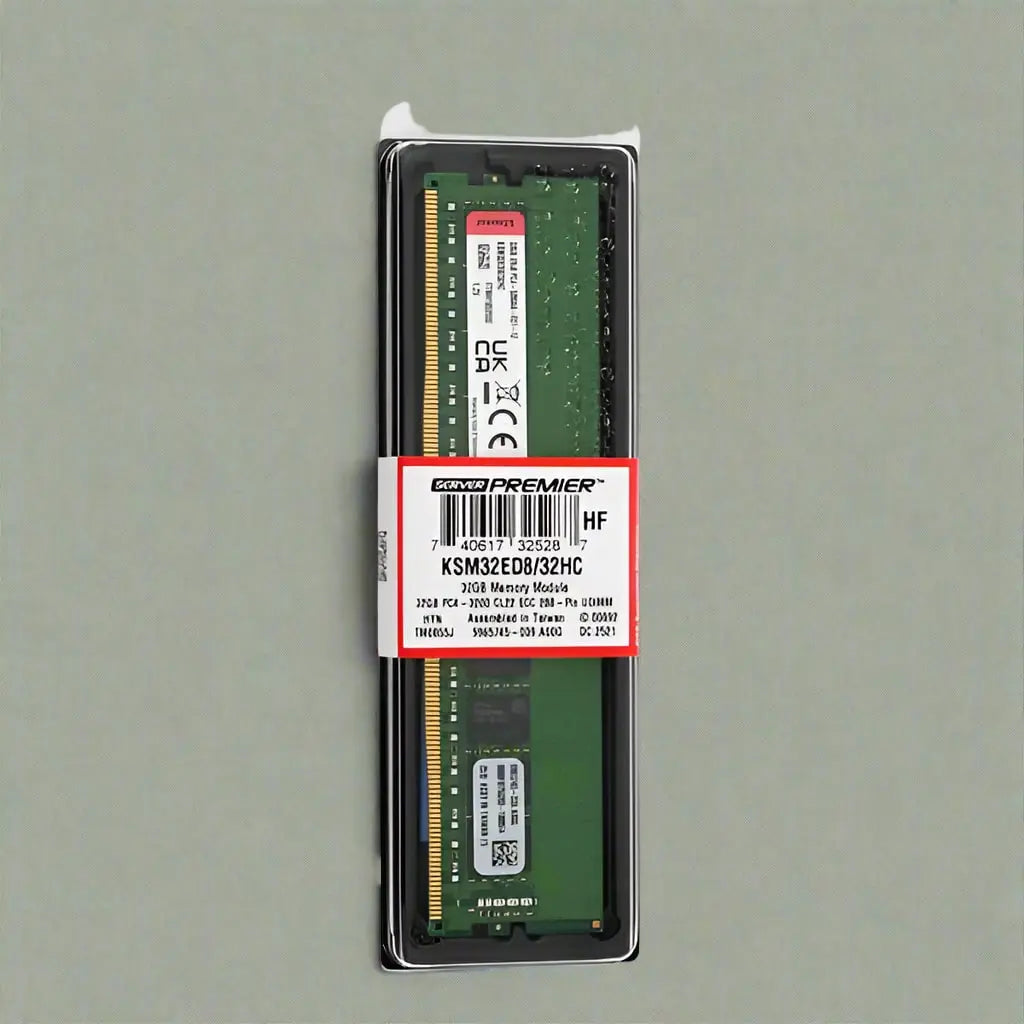

Kingston 32GB DDR4 RAM 3200 MHz CL22 288 Pin ECC Server Workstation Memory
💼 Enterprise-Grade 32GB DDR4 ECC RDIMM: Built for servers and workstations that demand uncompromising reliability.
⚡ High-Speed Performance – 3200 MT/s: Optimized for fast data throughput with JEDEC CL22 latency.
🧠 Dual Rank Architecture (2Rx8): Enhanced capacity and stability with integrated thermal sensor for smart heat management.
🔧 Advanced Memory Technologies: Includes LPASR, DBI, and ODT for efficient, low-power, and high-integrity operation.
🌿 Eco-Friendly & Certified: RoHS & Halogen-Free, UL-rated, and proudly Made in Taiwan for global compliance.
Unleash enterprise-grade performance with the Kingston KSM32ED8/32HC—a powerful 32GB DDR4 ECC Registered DIMM designed for high-demand servers and professional workstations. Built with precision using eighteen 2G x 8-bit FBGA components, this dual-rank module delivers blazing speeds of 3200 MT/s with JEDEC-standard CL22 latency. Featuring advanced technologies like LPASR, DBI, and ODT, it ensures efficient operation, reduced power consumption, and superior signal integrity. With gold contact fingers, integrated thermal monitoring, and global compliance certifications, this memory module is the perfect choice for mission-critical environments where stability and reliability are non-negotiable.
Product Specification:
| Specification | Details |
| Brand | Kingston |
| Model Number | KSM32ED8/32HC |
| Capacity | 32GB |
| Memory Type | DDR4 ECC Registered DIMM |
| Speed | 3200 MT/s (PC4-3200) |
| CAS Latency (CL) | 22 cycles |
| Voltage | 1.2V Typical |
| Form Factor | 288-Pin DIMM |
| Rank | Dual Rank (2Rx8) |
| ECC Support | Yes |
| Refresh Command Time (tRFCmin) | 350ns (min) |
| Row Cycle Time (tRCmin) | 45.75ns (min) |
| Row Active Time (tRASmin) | 32ns (min) |
| Burst Length | Fixed BL8, Selectable BC4/BL8 OTF |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| PCB Height | 1.23” (31.25mm) |
| Compliance | RoHS Compliant, Halogen-Free |
| Country of Origin | Taiwan |
| Warranty | Lifetime Warranty by Kingston |
