DeepCool PN1000M 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply for Gaming PC
🔋 1000W of Pure Performance
Unleash stable and efficient power delivery for high-end gaming rigs and professional workstations.
🌟 80 Plus Gold Certified
Enjoy up to 90% energy efficiency, reducing heat and electricity bills while boosting system reliability.
🧩 Fully Modular Design
Say goodbye to cable clutter—connect only what you need for a clean and optimized build.
🖥️ ATX 3.1 & PCIe 5.1 Ready
Future-proof your setup with support for the latest Intel and GPU standards, including 12V-2×6 connectors.
🔒 Comprehensive Protection Suite
Built-in safeguards including OVP, OPP, SCP, OTP, UVP, and more—your hardware stays safe under all conditions.
🔇 Silent Operation
Equipped with a high-quality fan and smart thermal control for whisper-quiet performance even under load.
🛡️ Up to 10-Year Warranty
Confidence that lasts—backed by Deepcool’s trusted long-term warranty.
| Feature | Details |
| Model | PN1000M |
| Form Factor | ATX 3.1 |
| Power Output | 1000 Watts |
| Efficiency Certification | 80 Plus Gold (≥90% under typical load) |
| Modularity | Fully Modular |

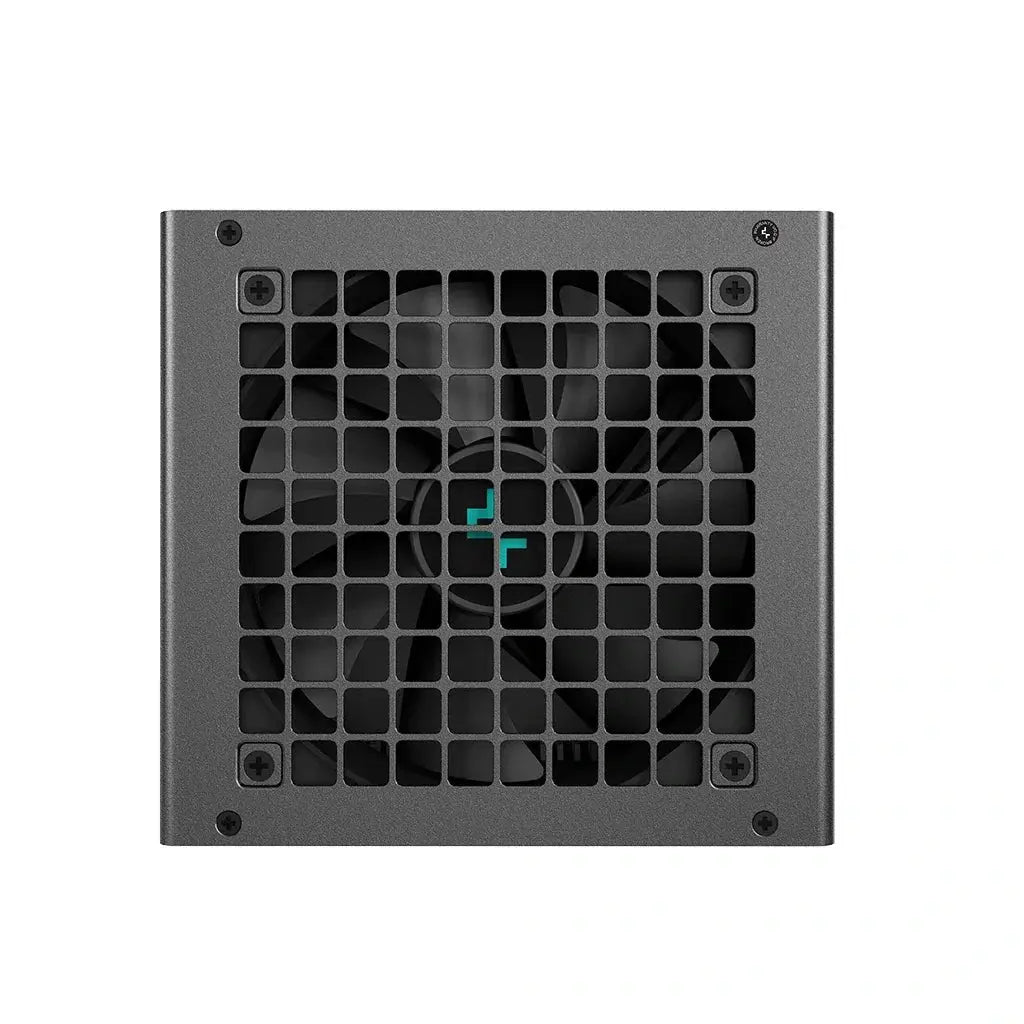

| Fan Type | 135mm Fluid Dynamic Bearing (FDB) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Hold-Up Time | ≥16ms at 80% Load |
| Power Good Signal | 100–150ms |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| PCIe Support | PCIe 5.1 with 12V-2×6 connector (up to 600W for GPUs) |

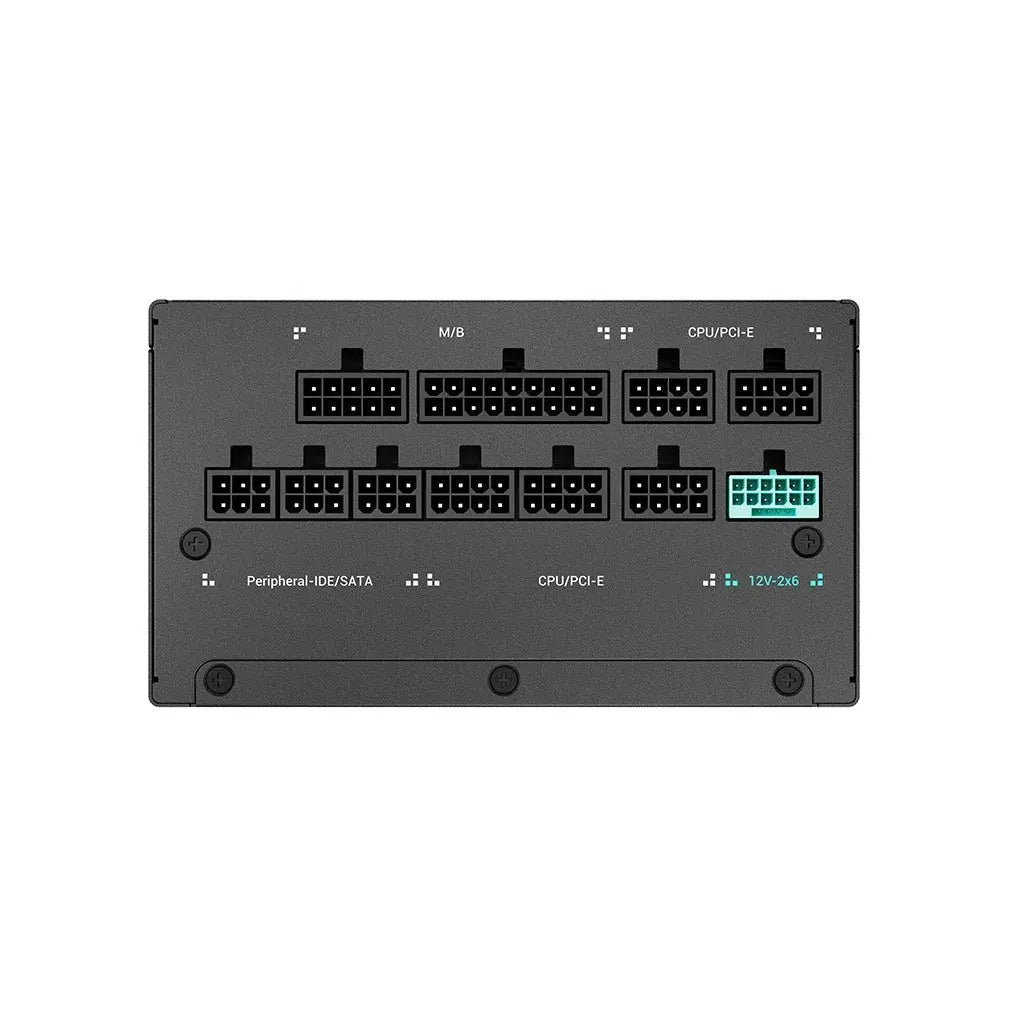

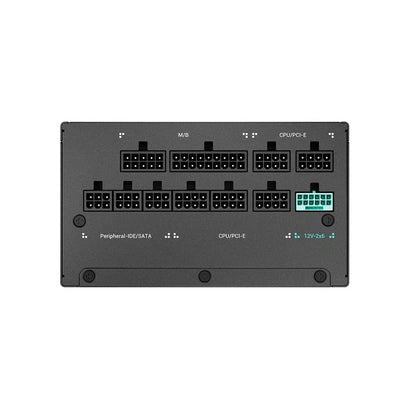

| Connectors | 2× EPS, 3× PCIe 6+2, 1× PCIe 12+4, 8× SATA, 2× Molex |

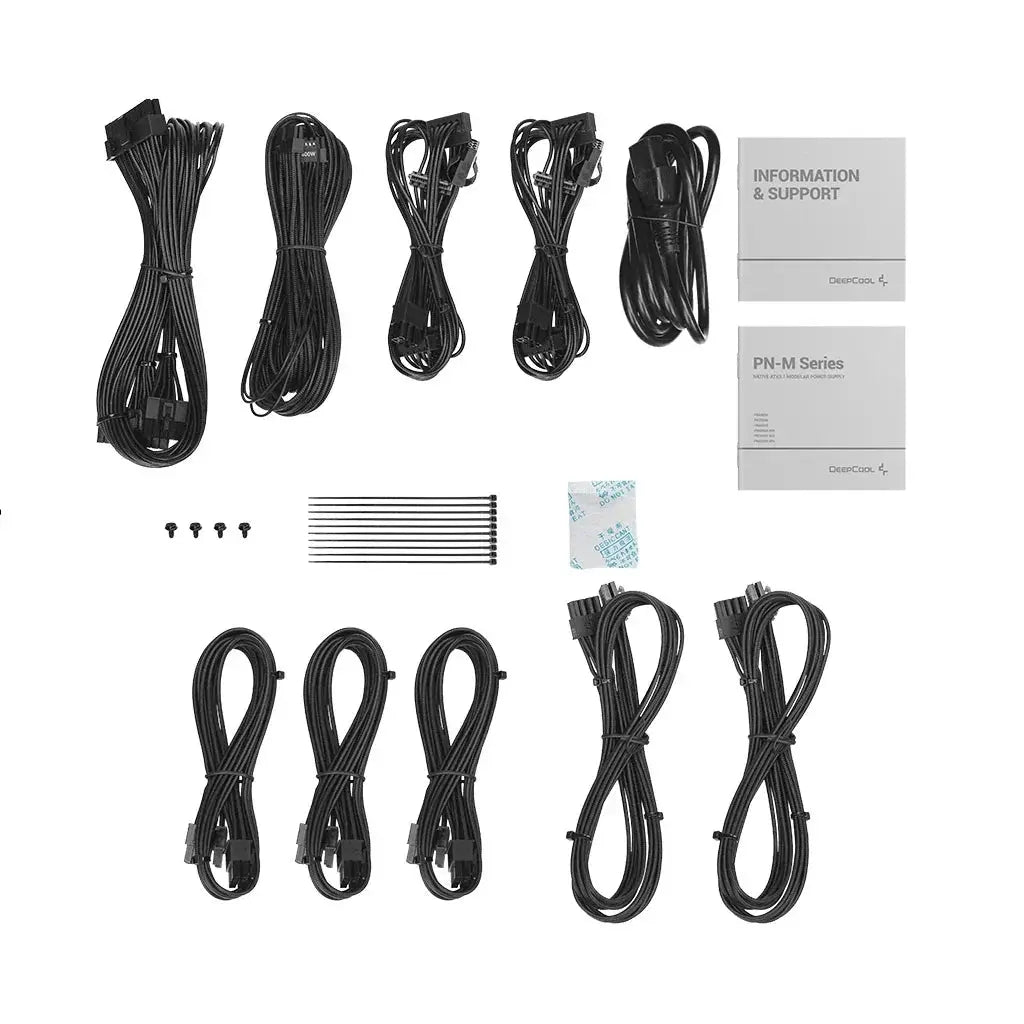

| Cable Type | Sleeved cables with 16AWG copper-core for GPU |
| Dimensions (W×L×H) | 150mm × 150mm × 86mm |
| Weight | ~1.72 kg |
| Operating Temperature | 0°C to 40°C |
| MTBF | >100,000 hours |
| Warranty | 10 Years |
| Certifications | CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, BIS |
| Environmental Compliance | ErP 2014, WEEE, RoHS, Triman, P65 |
