DEEPCOOL PM850D 850W Non-Modular 80 Plus Gold SMPS Power Supply
DEEPCOOL PM850D 850W Non-Modular 80 Plus Gold SMPS Power Supply
Couldn't load pickup availability
↩️ Returns & Refunds
30-day return window on eligible items (from delivery date).
- Item must be unused, in original packaging with all tags/accessories.
- GST invoice required for processing.
- Exclusions: hygiene/consumable items, used or physically damaged items, made-to-order goods.
- Refunds go to the original payment method after QC (typically 3–7 business days).
To start a return, contact us with your Order ID and clear photos of the item/box.
🛡 Brand Warranty
Official manufacturer warranty applies to eligible products. Coverage & duration follow the brand’s policy (typically 6–24 months).
- Keep your GST invoice — required for warranty service.
- Contact the brand’s authorized service centre or message us; we’ll guide you.
- Warranty covers manufacturing defects only (excludes liquid/physical damage, wear & tear, unauthorized repairs).
- Serial/IMEI/QR labels must be intact; include box accessories if asked.
For exact terms, please refer to the brand’s warranty card inside the box.
DEEPCOOL PM850D 850W Non-Modular 80 Plus Gold SMPS Power Supply
DEEPCOOL PM850D PSU comes with 80 Plus Gold certification. It is designed to deliver 850 Watts at a typical minimum efficiency of 91.2%.
The Non-Modular SMPS gives extended connectivity with 6x SATA, 3x 4-Pin, 3x 6 PCI-e+2 Pin connectors giving guaranteed universal compatibility with all major motherboards.

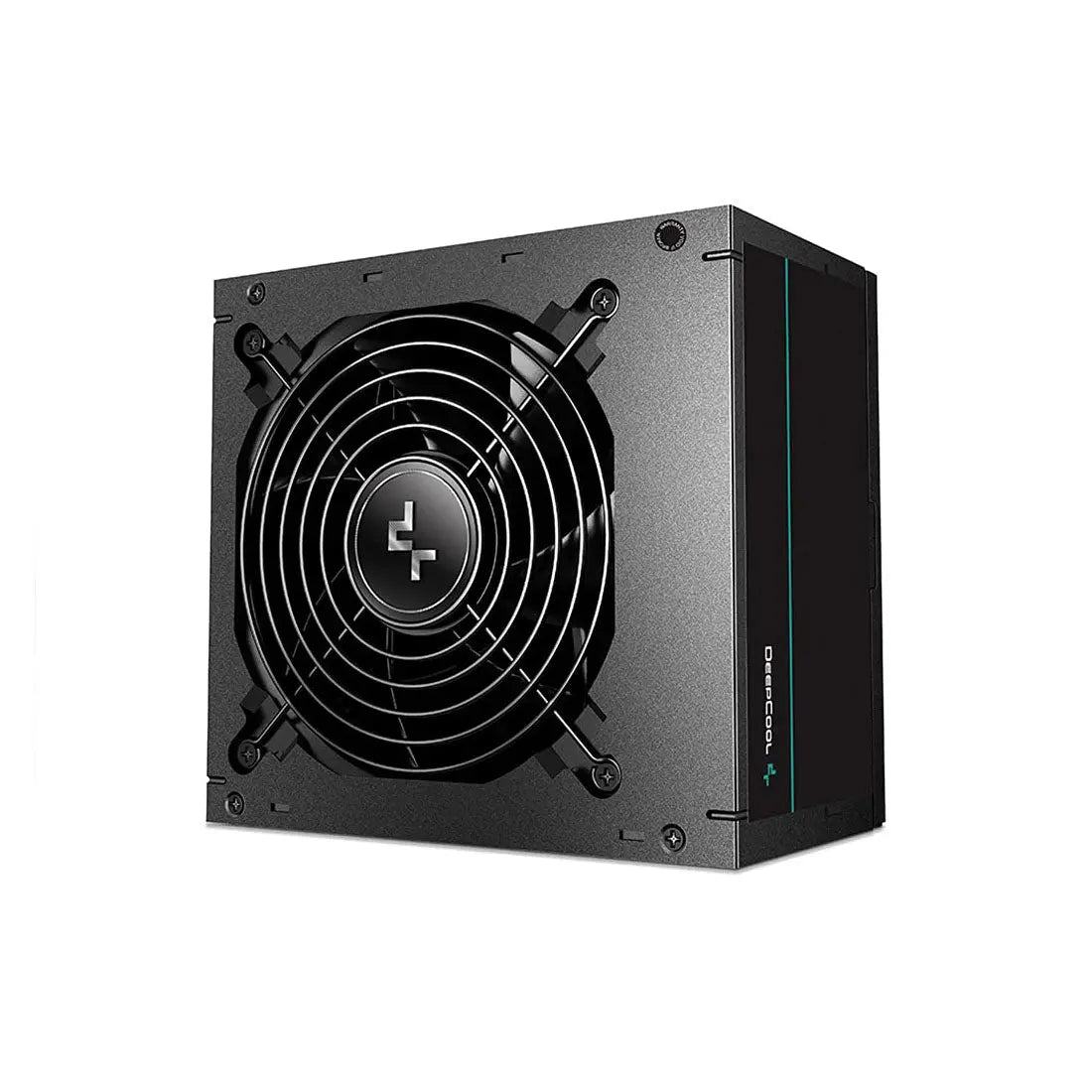

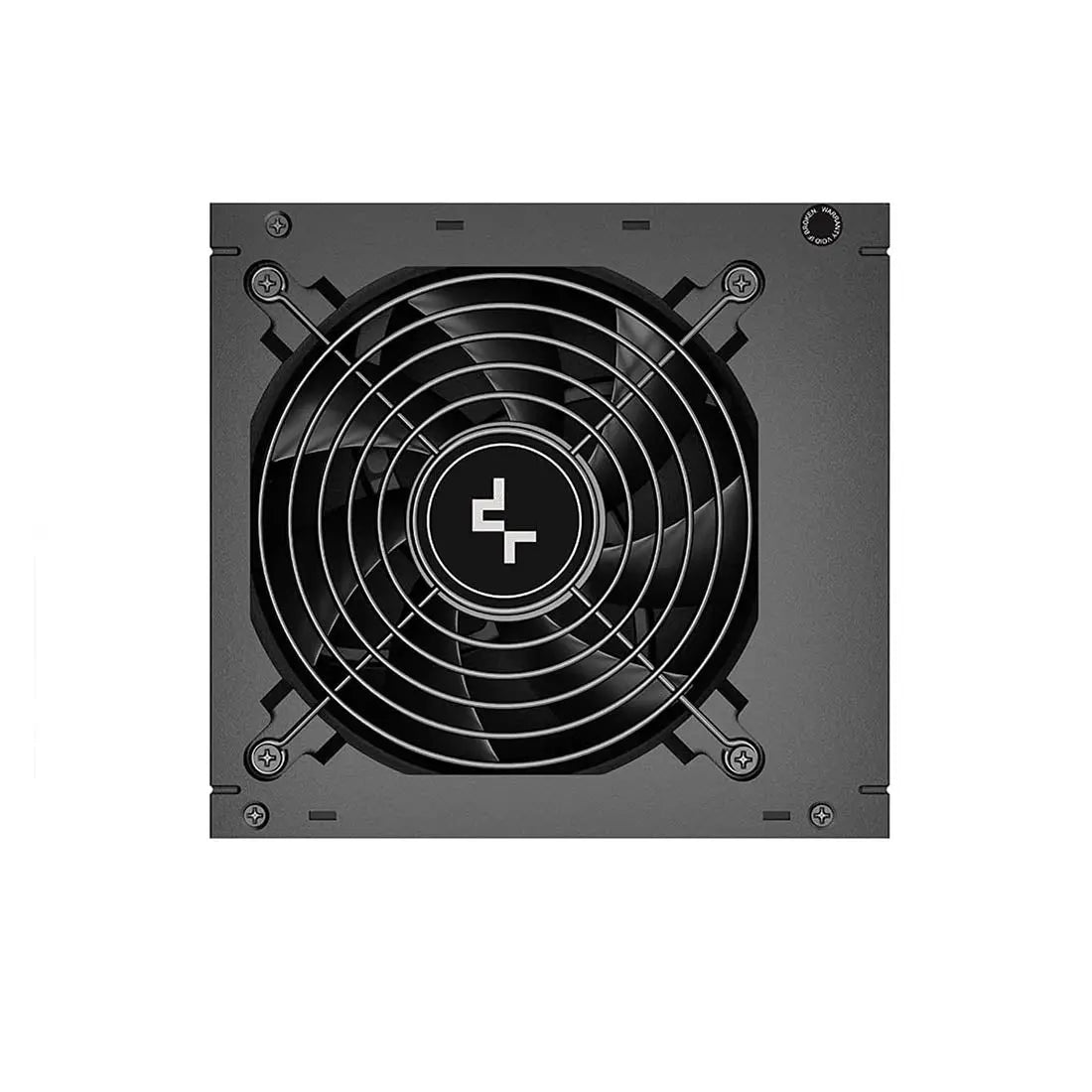

Equipped with 120mm FDB fan, the PM850D has temperature control function to keep low noise depending on the load and mode of operation.
Enabled with Active PFC, the SMPS comes with a bunch of protections including Over-Voltage, Over-Current, UVP, OPP, OTP and SCP.
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards
| Model | PM850D |
| Modular | Non-Modular |
| Compliant with | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Efficiency | 80 PLUS GOLD Certified up to 90% efficiency |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Wattage | 850W |
| PSU Form Factor | ATX 12V V2.4 |
| PFC | Active PFC |
| Fan | 120 mm |
| Connectors | 1 x Main Power 24(20+4)Pin connector 1x x EPS 12V 8(4+4) pin connectors x2 2x SATA x3 1 x PERIPHERAL 4-pin connectors x3 3x PCI-E (6+2) pin connectors x1 |
| MTBF | 100,000 Hours |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Dimension | 150 × 140 × 86 mm |
| Warranty | 5 Year Warranty |
