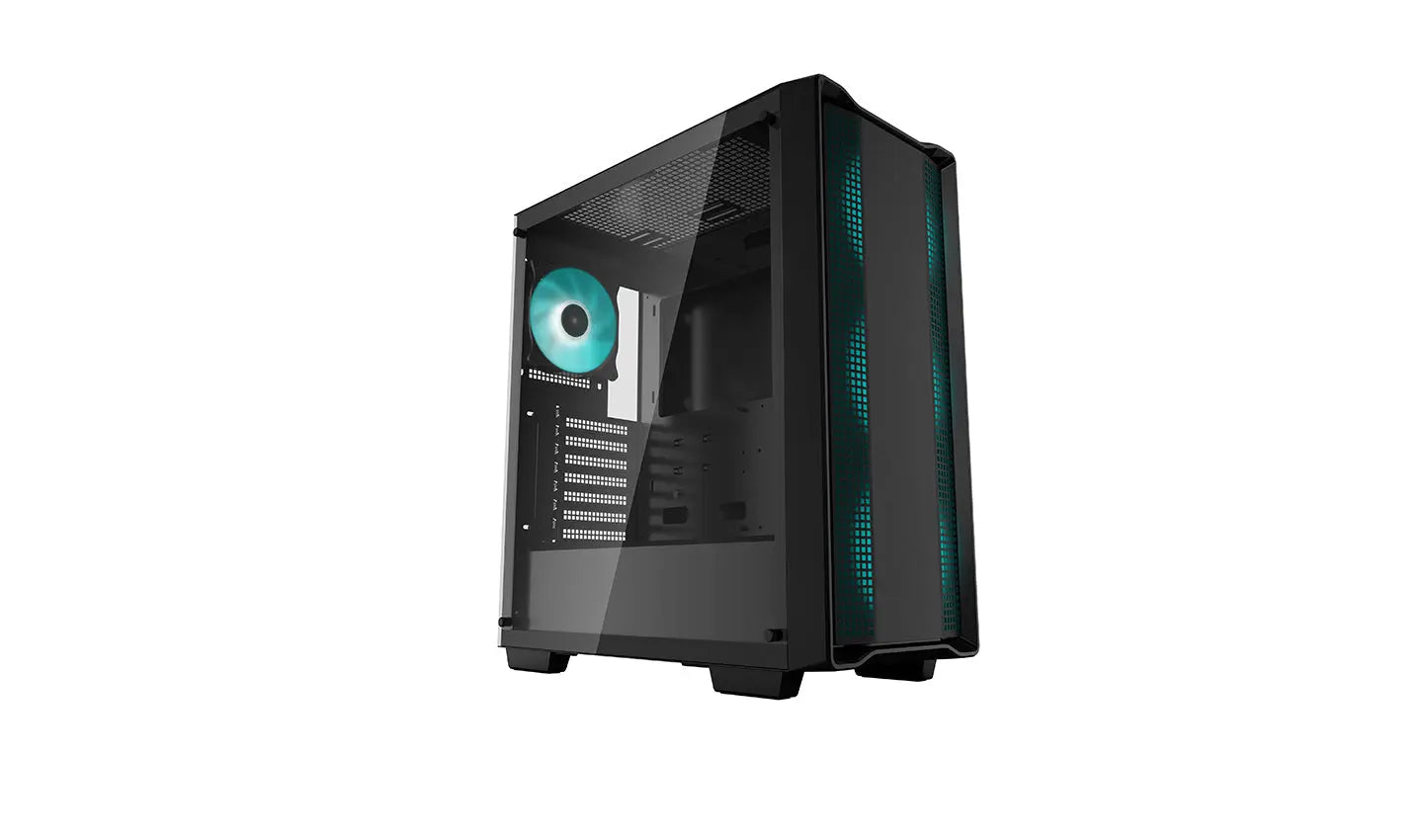

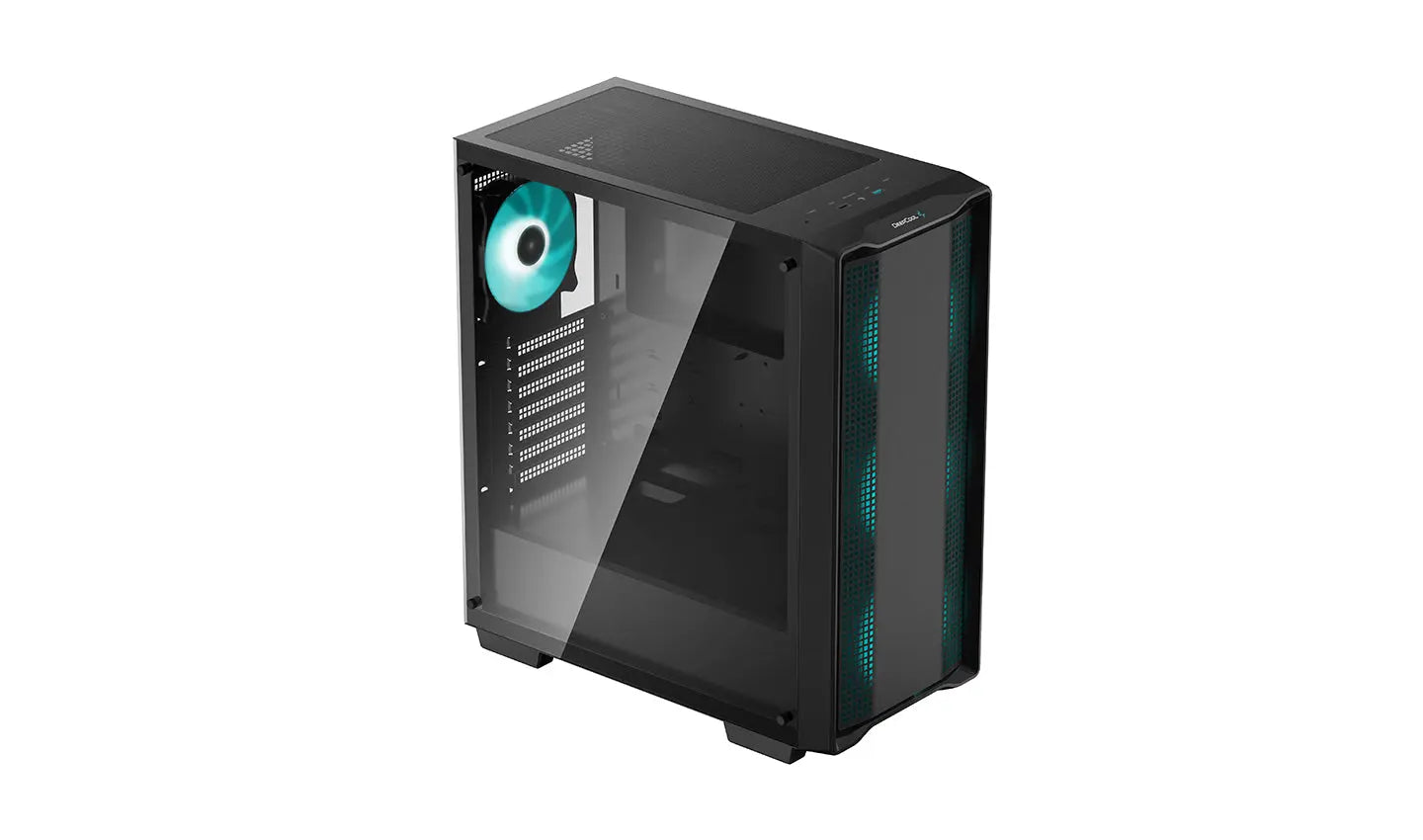

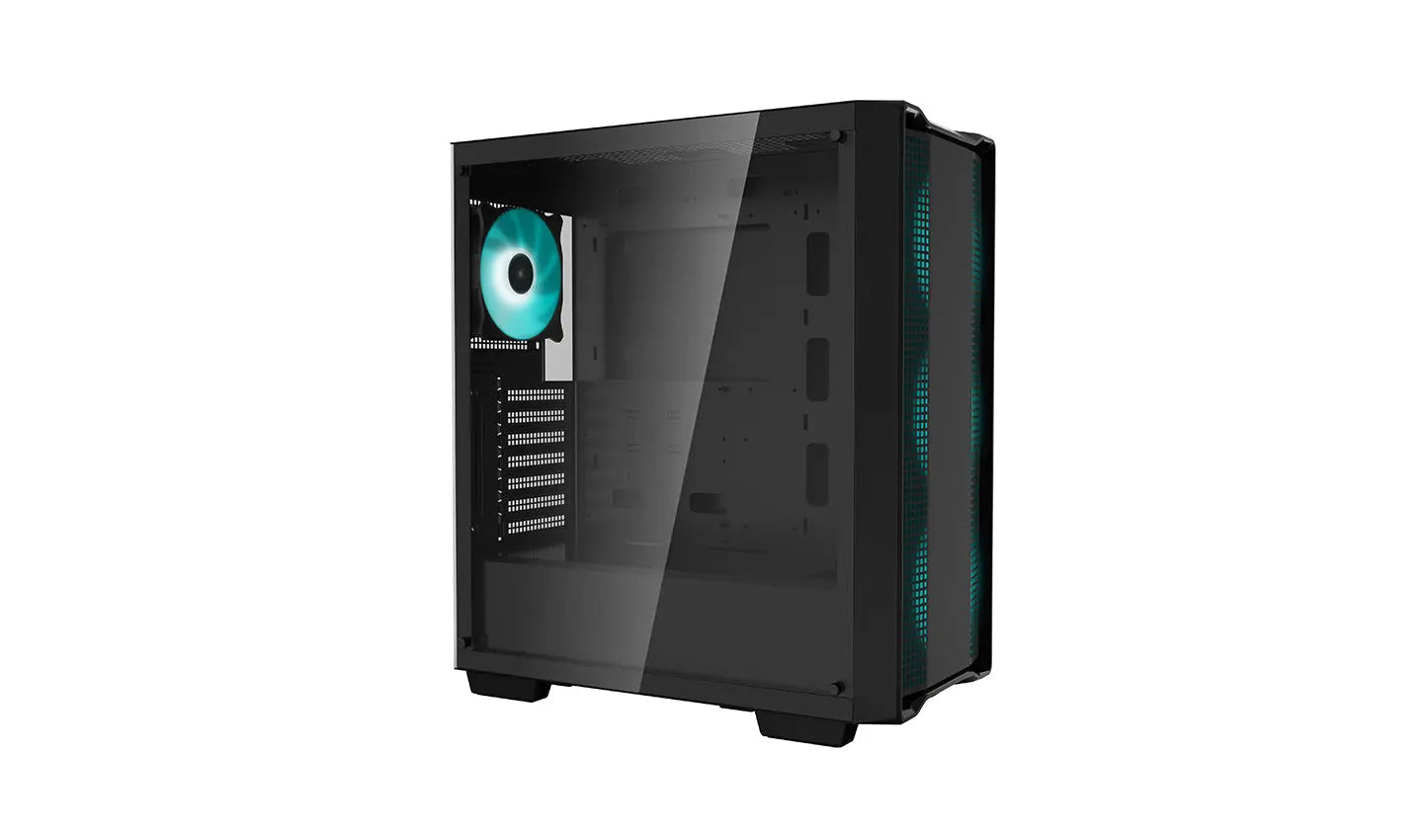

DEEPCOOL MATREXX CC560 Tempered Glass Window ATX Mid Tower Cabinet Four Pre-Installed LED Fans

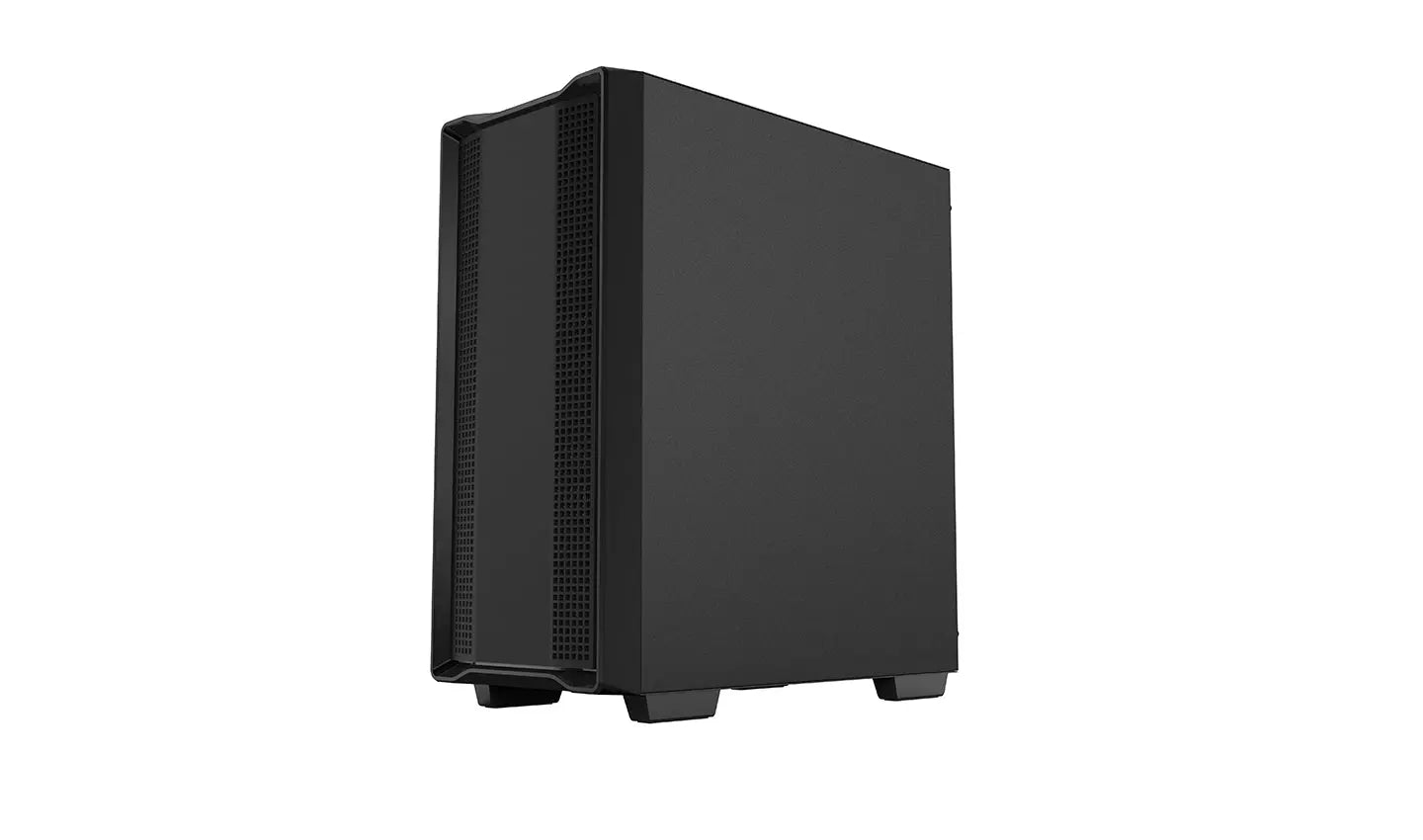

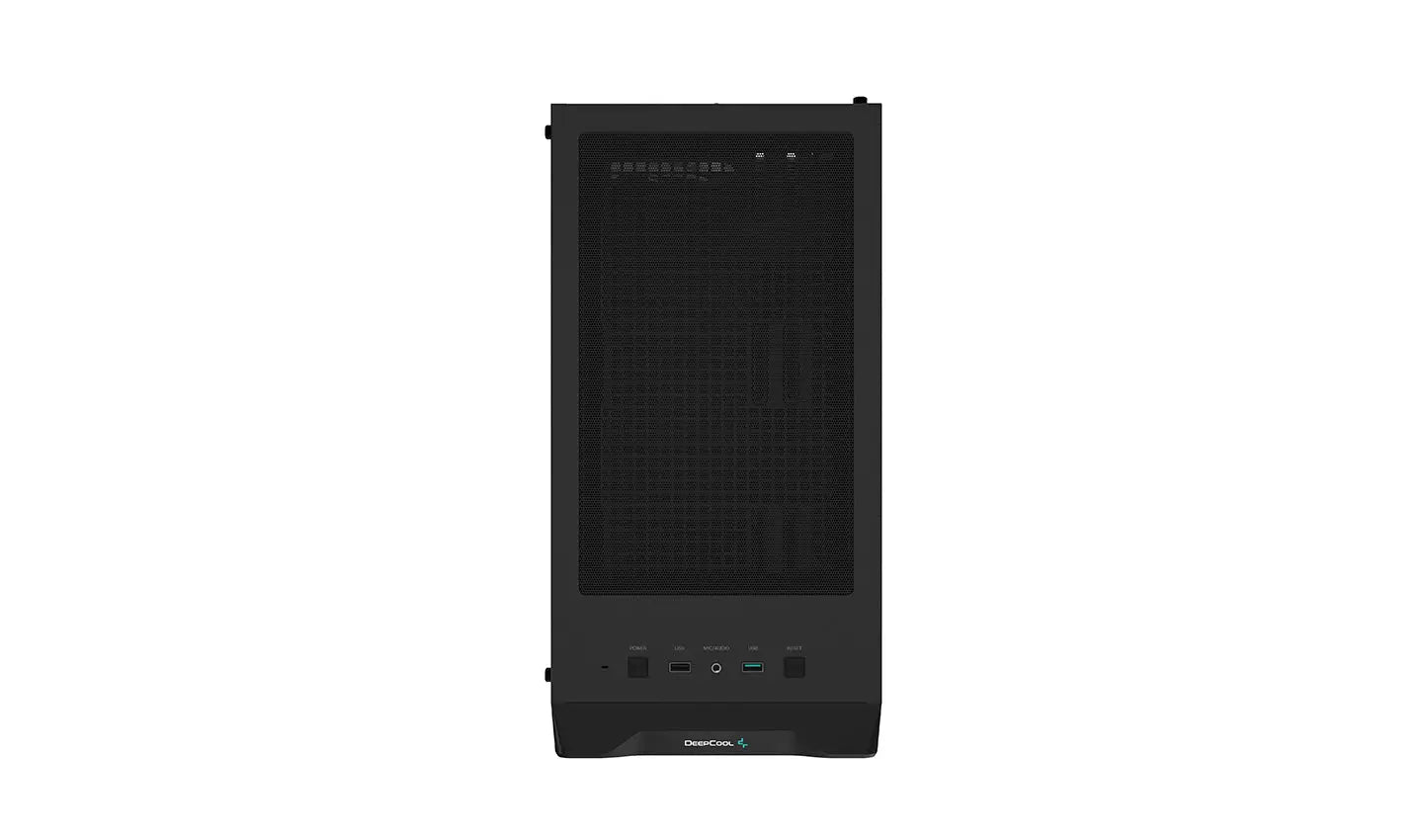

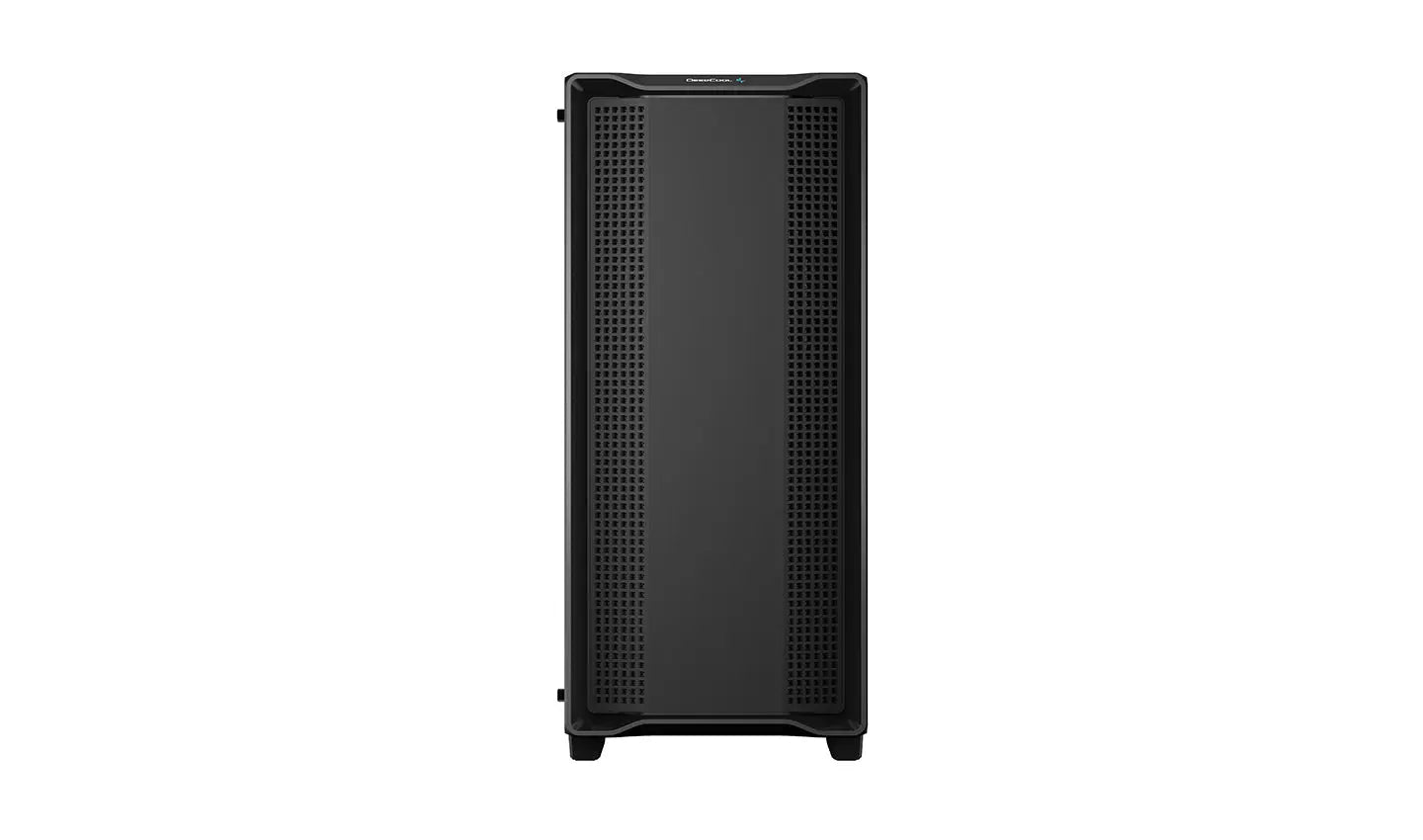

Well-ventilated throughout the entire chassis, the CC560 sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
Abundant Airflow Performance
Well ventilated throughout the entire chassis, the CC560 sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
Primed and Ready

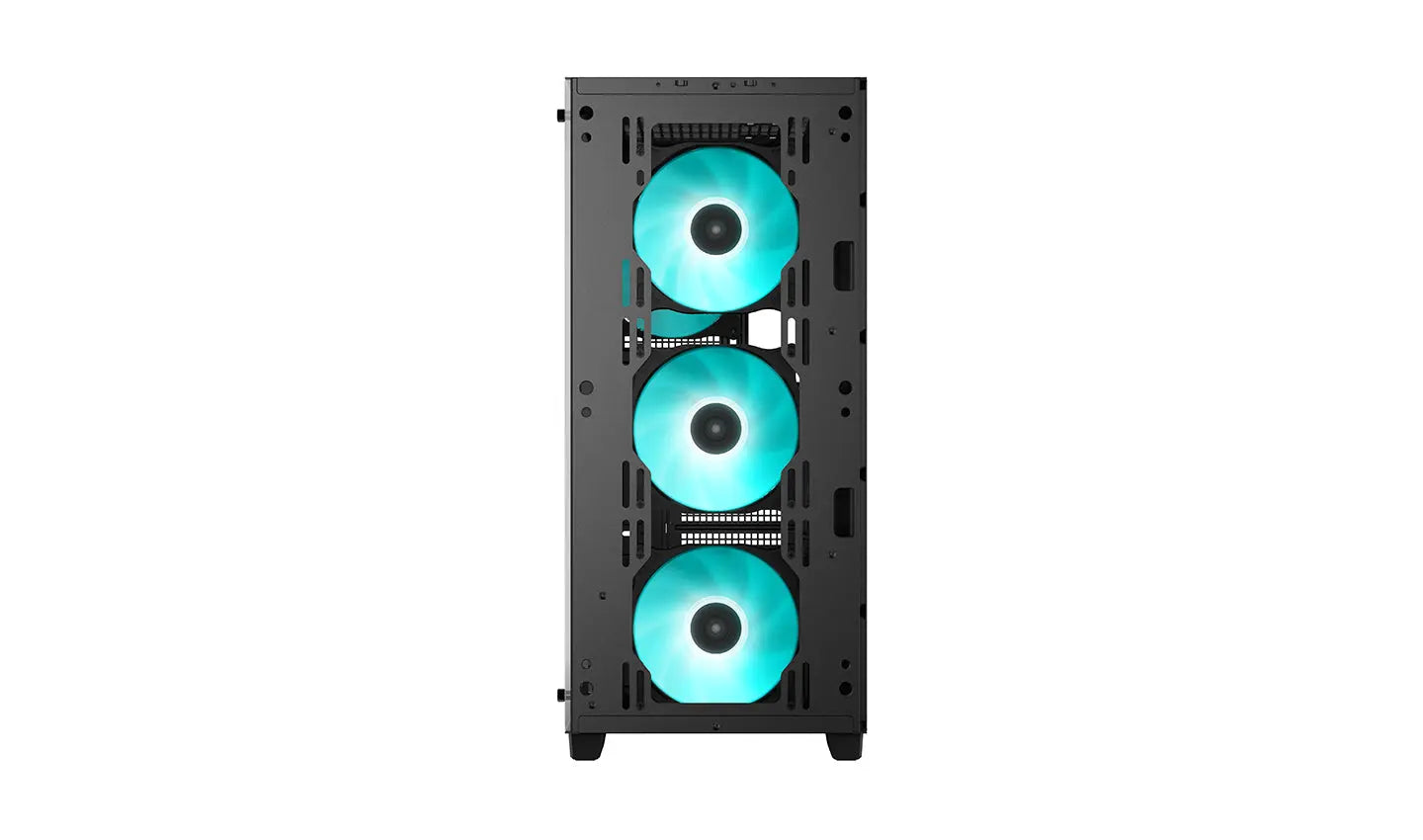

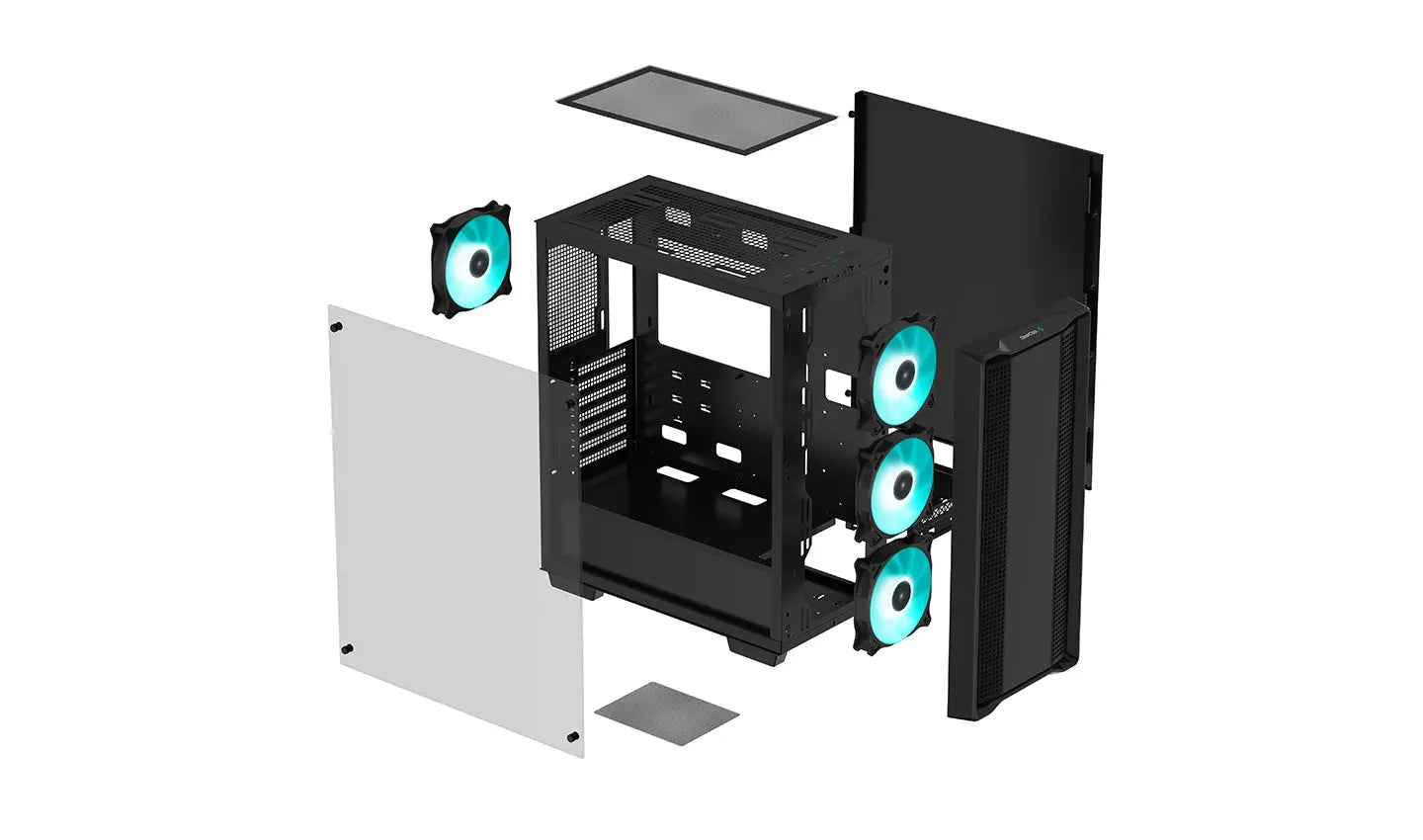

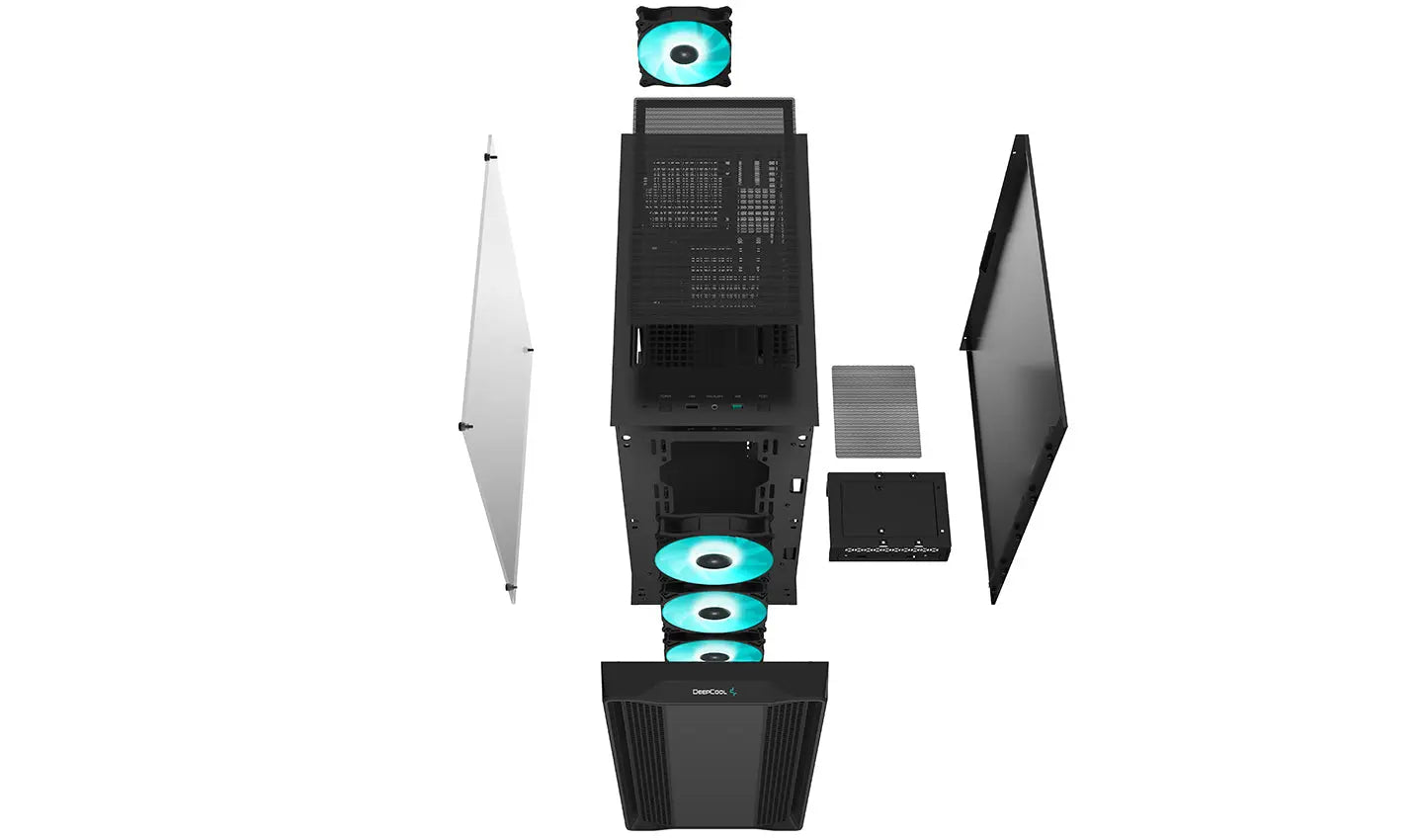

A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
Wide Cooling Support
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
Storage Solutions

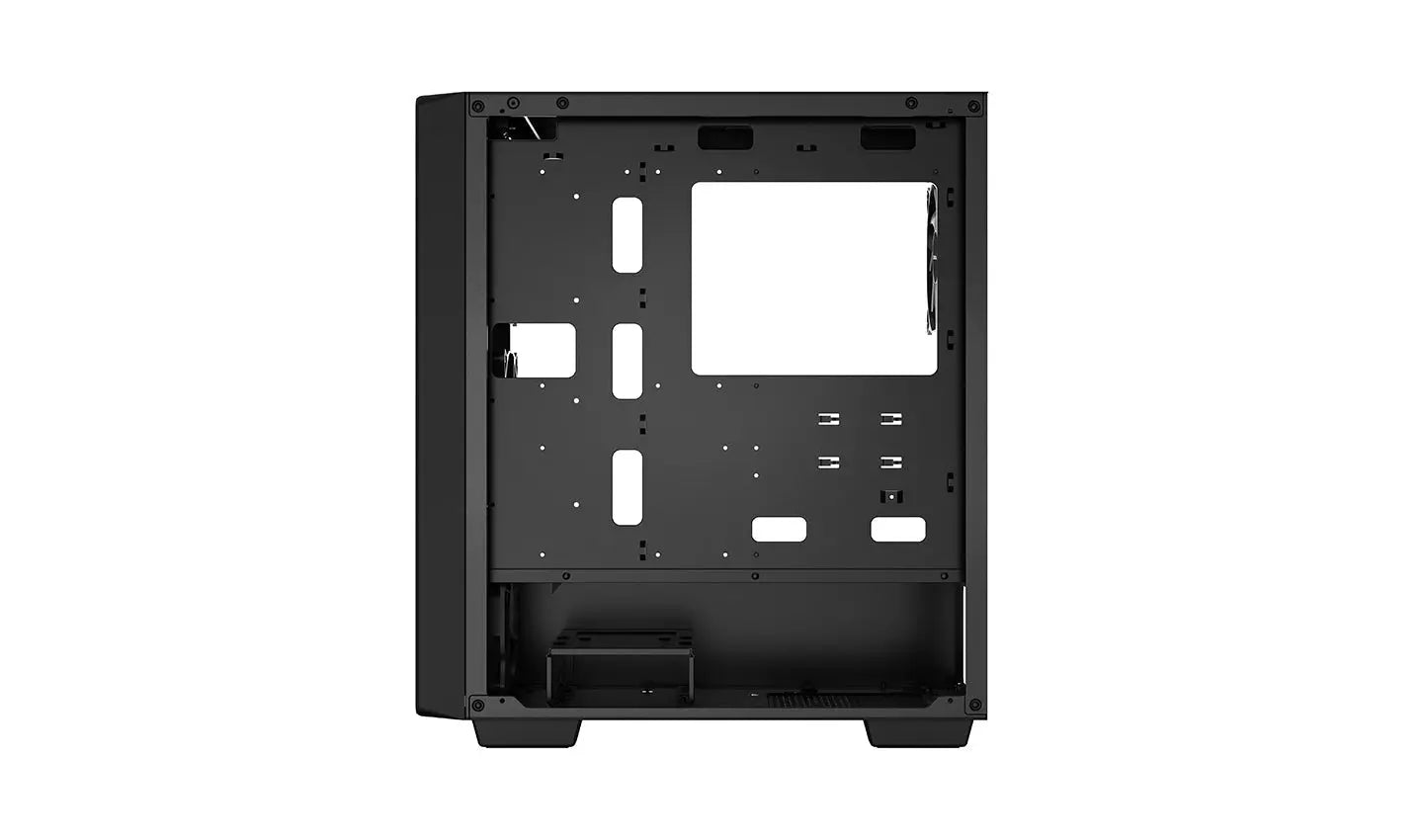

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.
| Model | R-CC560-BKGAA4-G-1 |
| Dimensions | 416×210×477mm (L×W×H) |
| Form Factor | Mid Tower |
| Materials | ABS+SPCC+Tempered Glass |
| Mainboard Support | Mini-ITX / Mico-ATX / ATX |

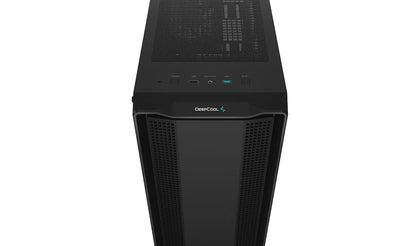

| I/O Ports | 1×USB 3.0 2×USB 2.0 1×Audio |
| Side Panel | Tempered Glass |
| Expansion & Drive Bays | |
| Expansion Slots | 7 Slots |
| 3.5 Inch | 2 |
| 2.5 Inch | 2 |
| Fan Support | |
| Front | 3×120 2×140mm |
| Top | 2×120 2×140mm |

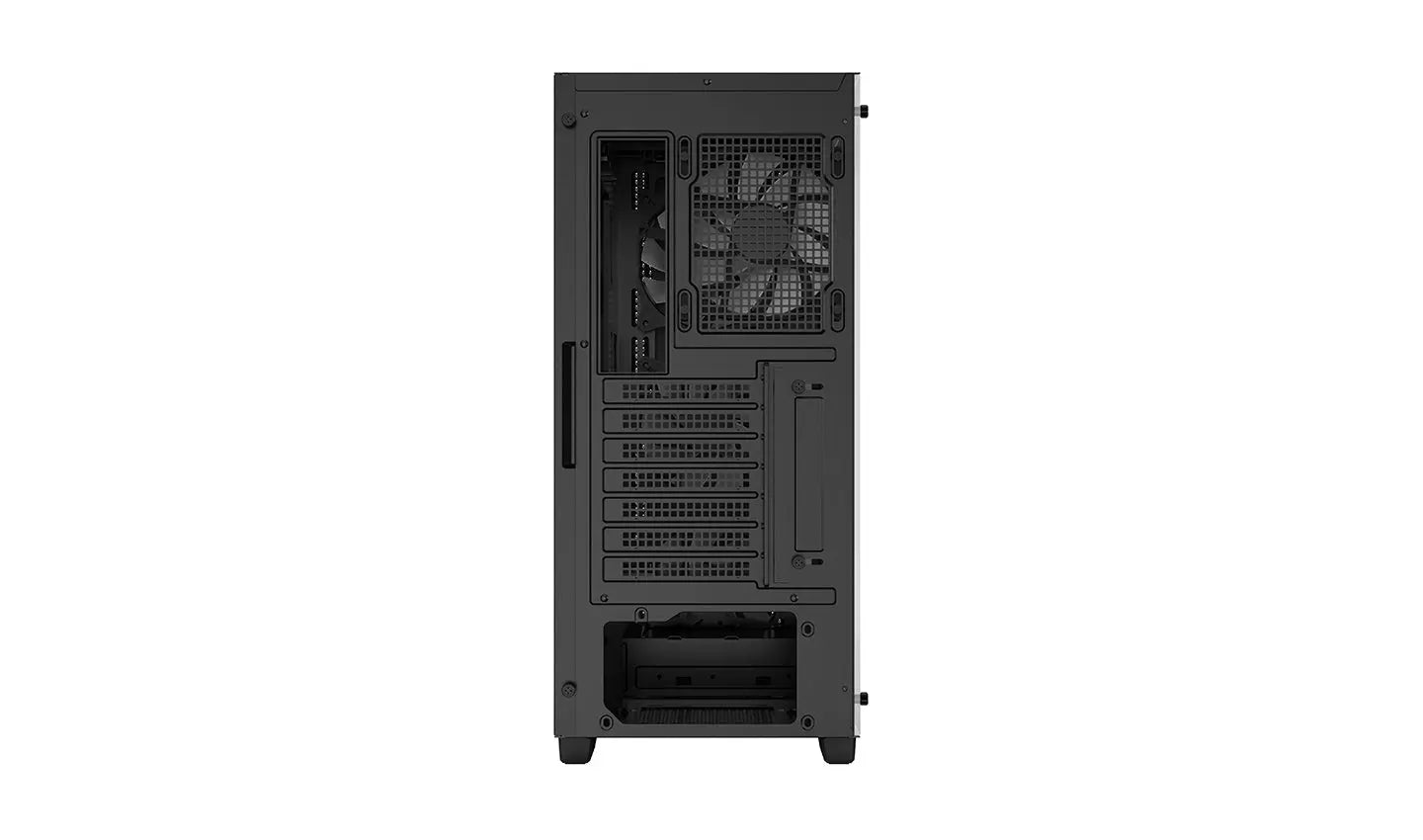

| Rear | 1×120mm |
| Included Fan | 4 × 120mm |
| Fan RGB Effect | ARGB |
| Radiator Support | |
| Front | 1 x 120 1 x 140 1 x 240 1 x 280 1 x 360mm |
| Top | 1 x 120 1 x 240mm |
| Rear | 1 x 120 mm |
| Clearance | |
| CPU Cooler Height Limit | 163mm |
| GPU Length Limit | 370mm |
| Power Supply Type | ATX PS2（maximum length: 170mm） |
| Miscellaneous | |
| Dust Filters | Yes |
| Net Weight | 5.25Kg |
| Gross Weight | 6.40 kg |
| Warranty | 3 Year of Brand Warranty |
