ASUS PRIME H610M-E D4 Intel H670 LGA 1700 ATX Motherboard with PCIe 4.0 and Dual M.2 Slots
The ASUS PRIME H610M-E D4 ATX motherboard is designed to support latest 12th Gen Intel CPU's with LGA 1700 socket, Pentium Gold and Celeron Processors with H610 Intel Chipset.
The H610M-E based motherboard is PCIe 4.0 Ready supporting up to 2 slot 64GB DDR4 3200MHz of memory and Intel Turbo Boost Technology to push your experience to its peak.
Enjoy extended connectivity with the next-gen technology of PCIe 4.0, dual M.2 slots, Intel 1Gb Ethernet, Rear USB 3.2 Gen 1 and Q-LED.
Features the most comprehensive cooling options ever that are configurable via Fan Xpert 2+. It employs PCH heatsink.
The board comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection and DRAM Overcurrent Protection.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610M-E D4 provides users and PC DIY builders a range of performance tuning options

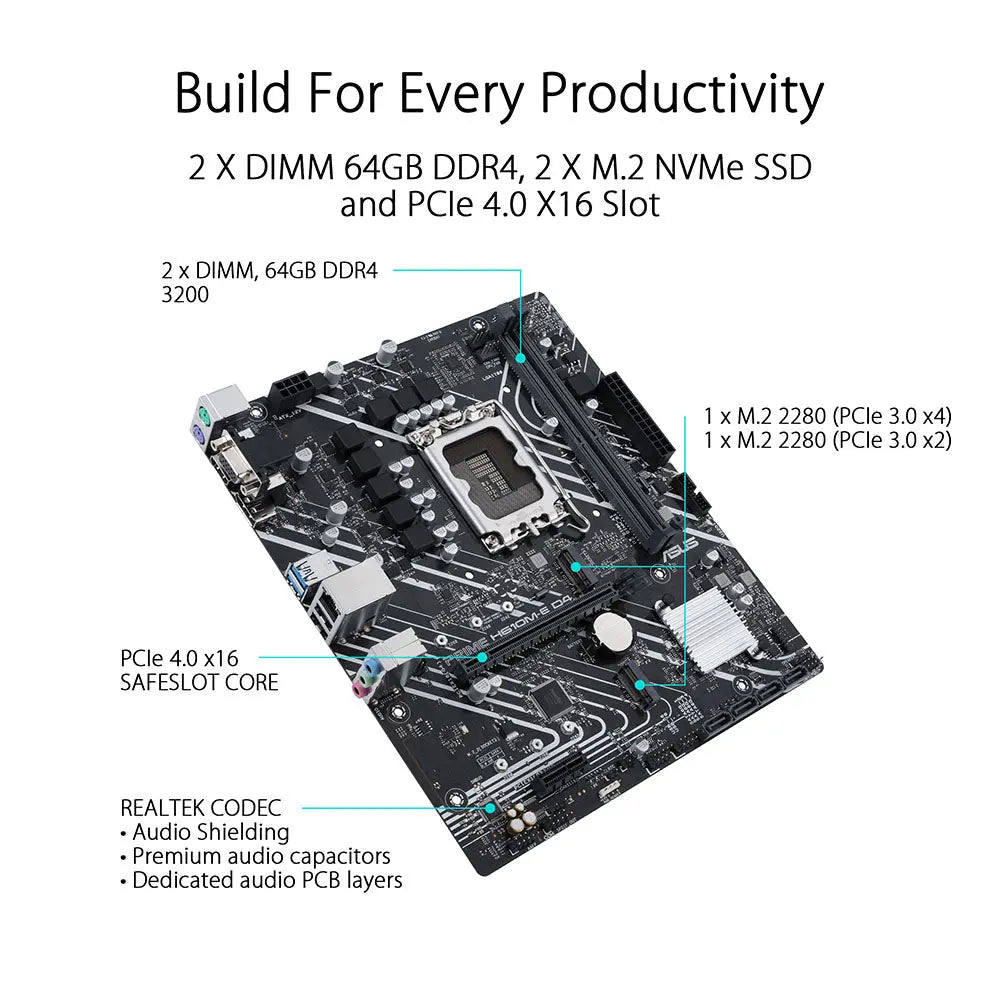

Dual M.2 Slots
Offers a total of two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0 Slot
Offers PCIe 4.0 connectivity. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
All Around Energy
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

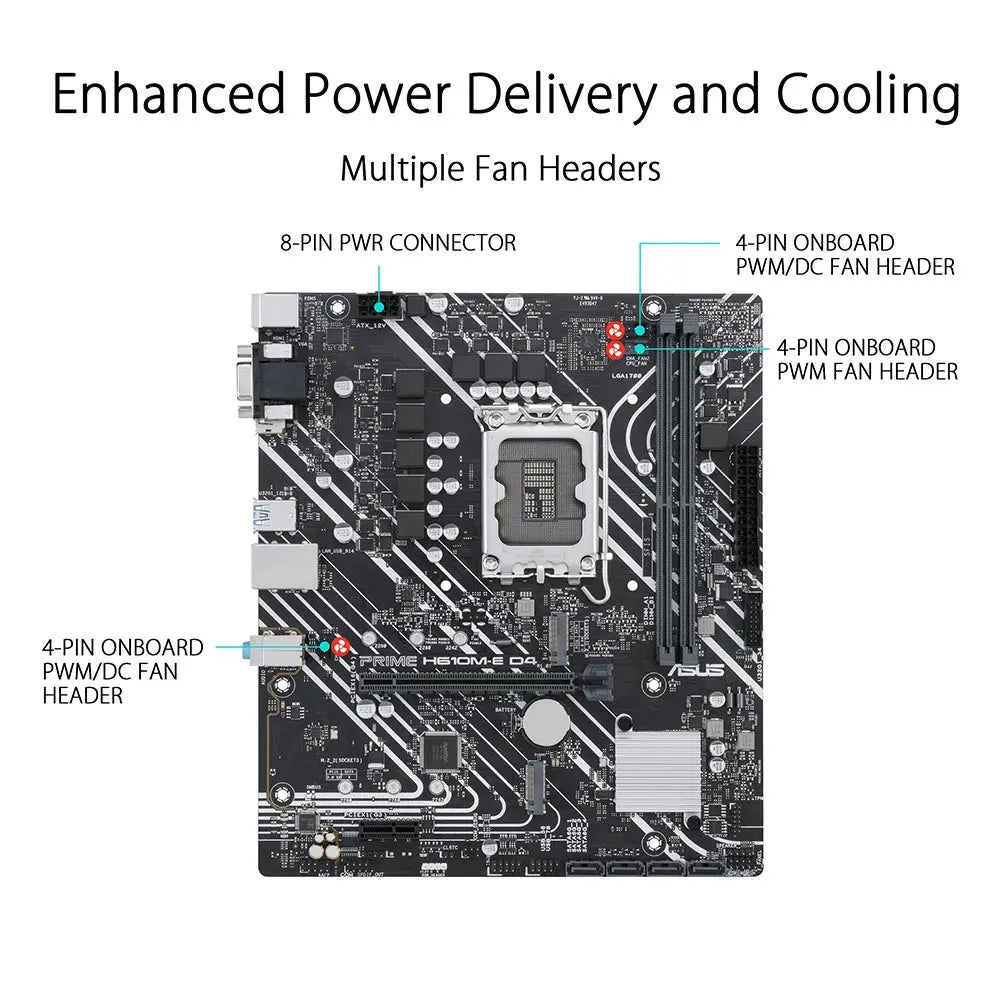

Fan Xpert 4
The software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. The same can be done via UEFI BIOS.
Digi+ VRM Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
| Model | ASUS PRIME H610M-E D4 Micro-ATX Motherboard |
| Part Number | 90MB19N0-M0IAY0 |
| CPU Socket | Intel Socket LGA 1700 |
| Chipset | Intel H610 |
| CPU Support | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x DisplayPort 1 x D-Sub Port 1 x HDMI Port |
| Expansion Slot |
Intel 12th Gen Processors: 1 x PCIe 4.0 x16 slot Intel H610 Chipset: 1 x PCIe 3.0 x1 slot |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Storage |
Intel H610 Chipset: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| USB |
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

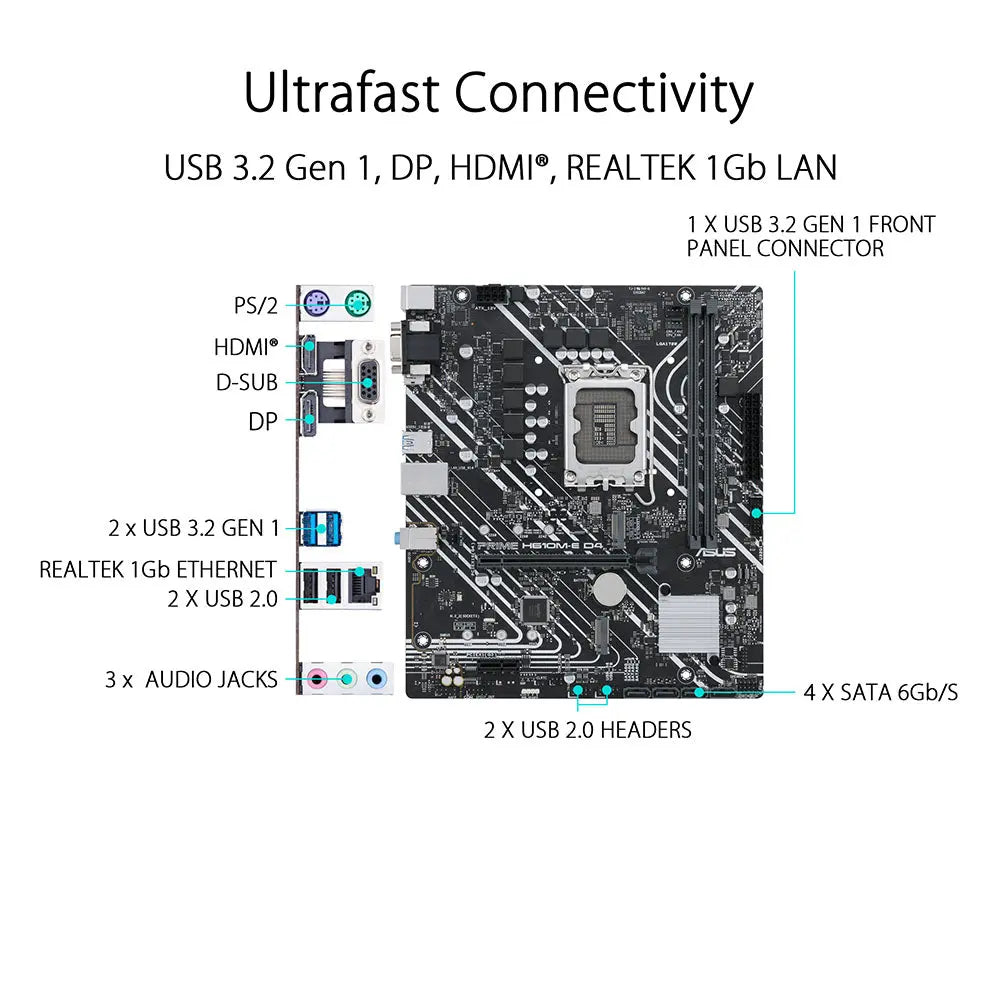

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| I/O Ports |

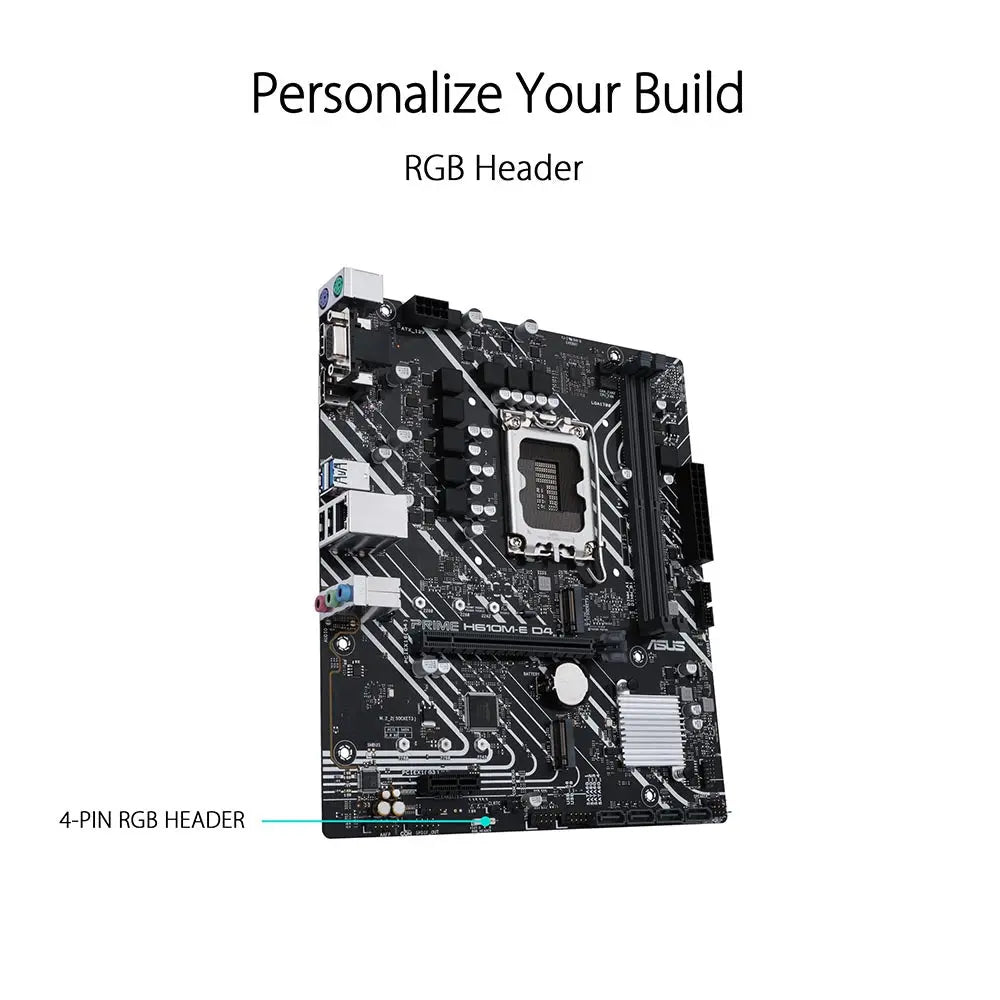

Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |

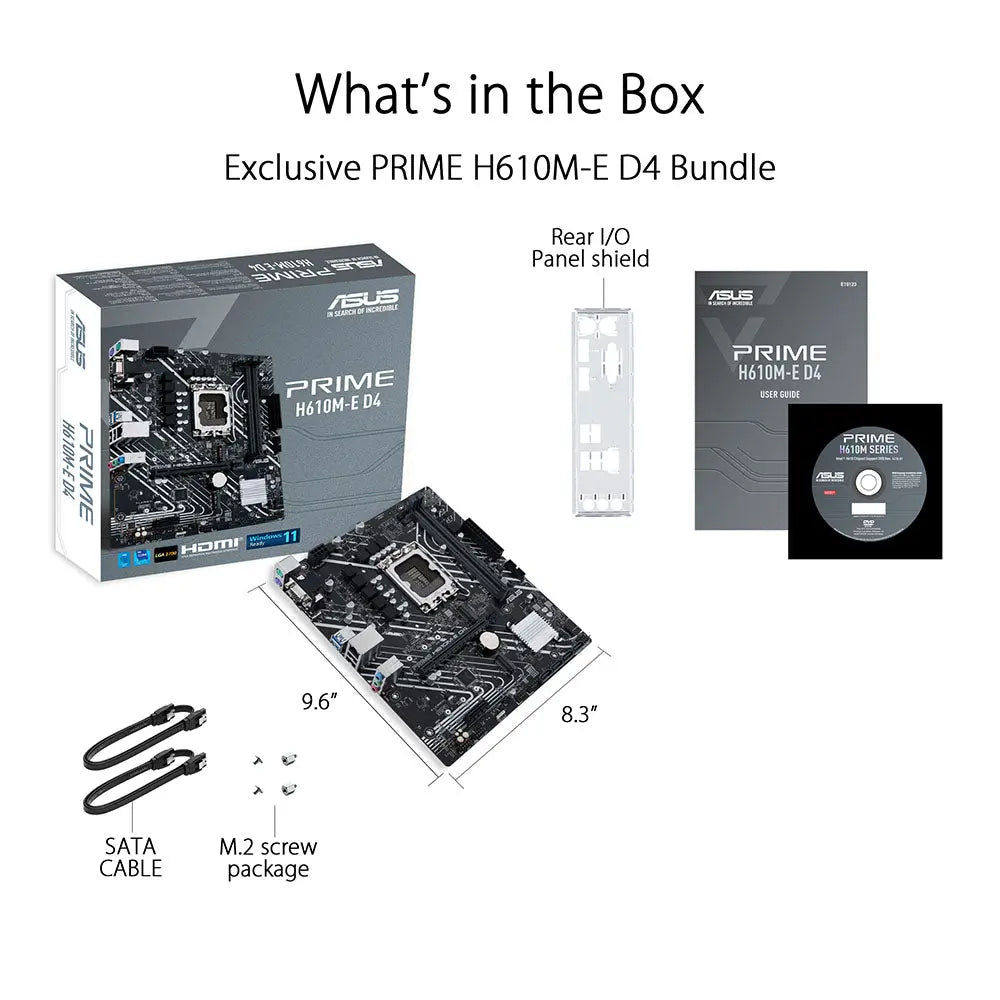

| Accessories |
Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Dimensions | 24.4 cm x 21.1 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
