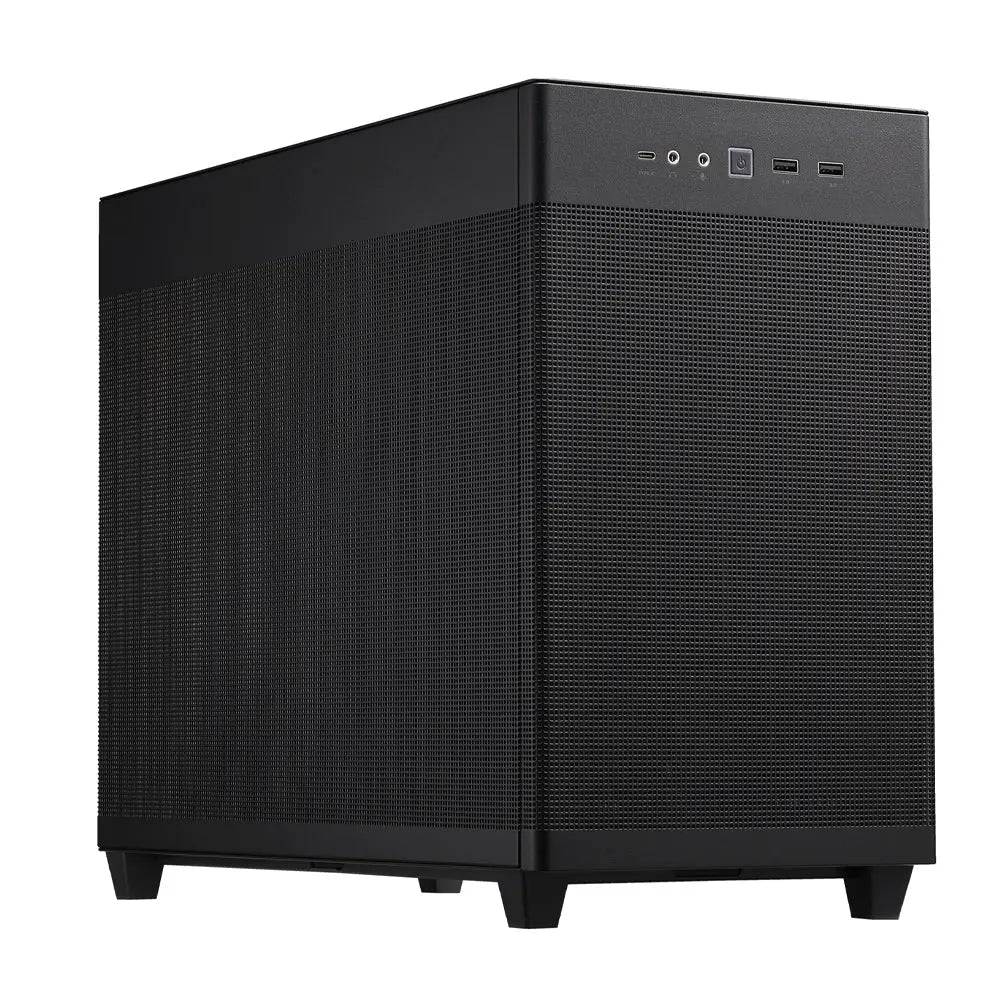

ASUS Prime AP201 Micro-ATX Cabinet with Pre-installed 120mm Fan and USB Type-C (Black)
The ASUS Prime AP201 is a stylish 33-liter MicroATX case support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

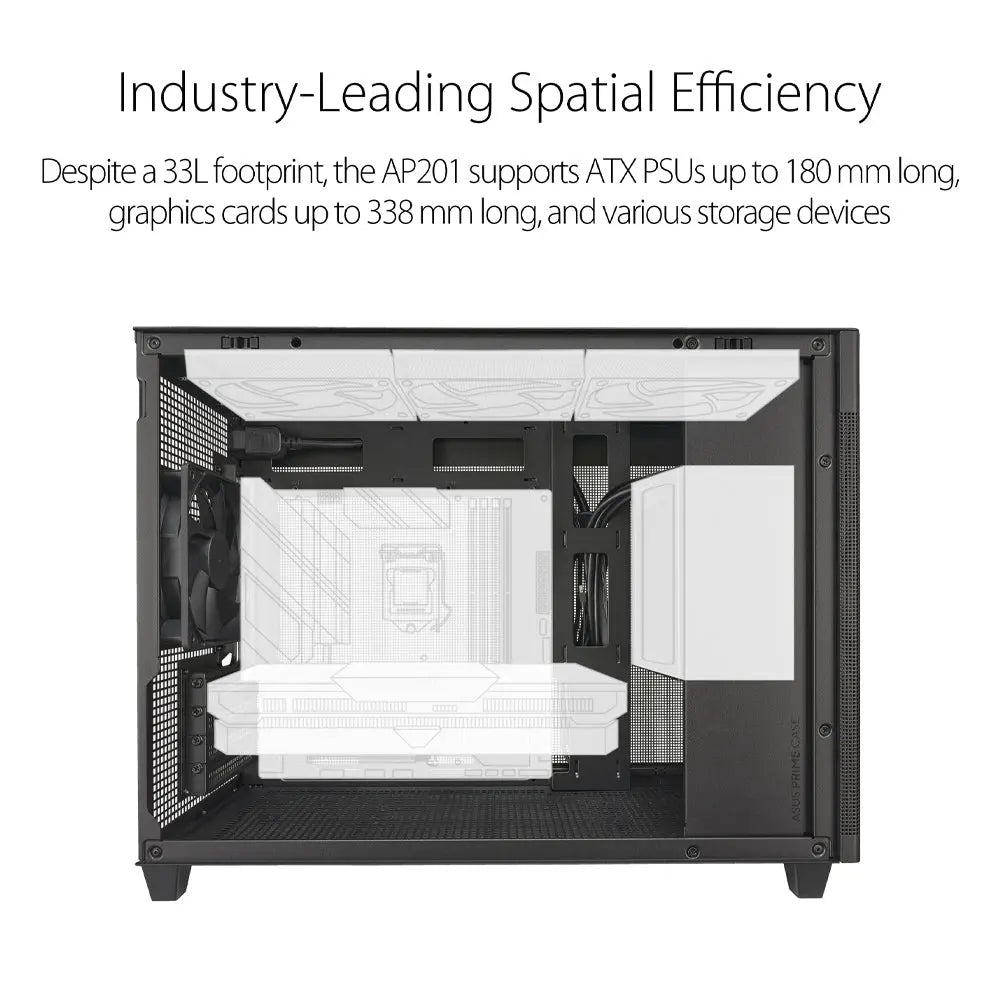

The AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

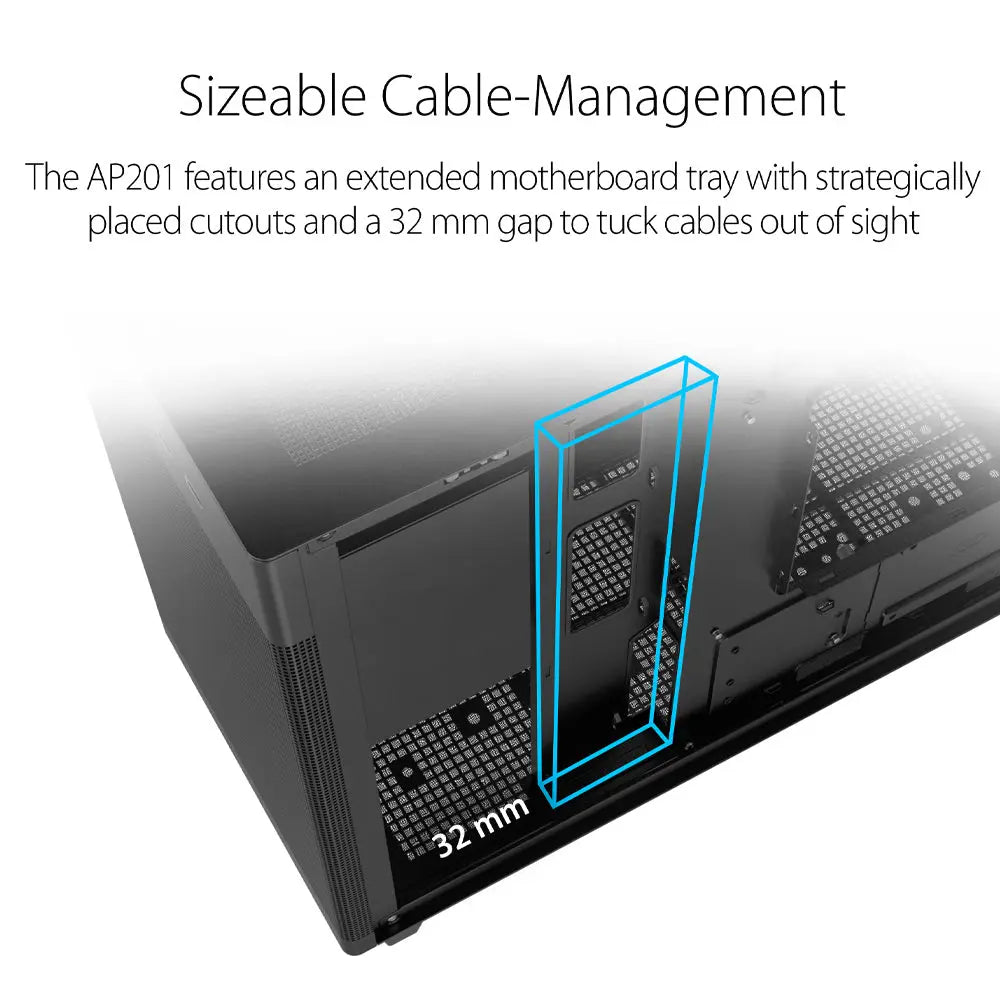

The ASUS Micro-ATX Cabinet features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

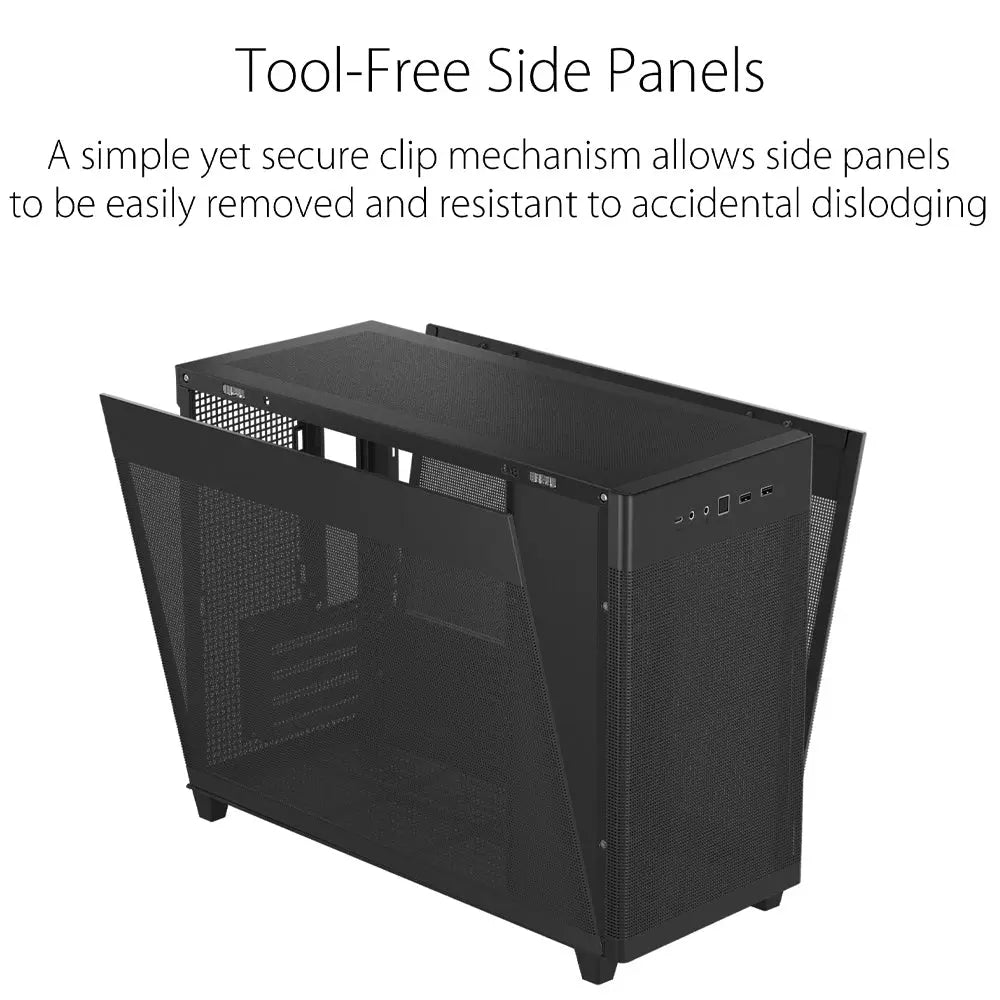

ASUS Cabinet comes with Tool-Free Side Panels, a simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
Go Big. Stay Compact.
The ASUS Prime AP201 is a breakthrough in Micro-ATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space.
| Model | ASUS Prime AP201 |
| Part Number | 90DC00G0-B30000 |
| Dimensions | 205 x 350 x 460 mm |
| Form Factor | Micro ATX Tower |
| Color | Black |
| Materials | Steel / Plastic |
| Mainboard Support | Micro-ATX / Mini-ITX |
| Front I/O Ports | 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1 1 x USB 3.2 Gen2 Type C |
| Expansion & Drive Bays | |
| Expansion Slots | 4 |
| 3.5 Inch / 2.5 Inch | 3 |
| 2.5 Inch | 1 |
| Fan Support | |
| Front | 3 x 120 mm 2 x 140 mm |
| Top | 3 x 120 mm 2 x 140 mm |
| Rear | 1 x 120 mm |
| Included Fan | 1 x 120 mm Rear |
| Radiator Support | |
| Top | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Rear | 120 mm |
| Clearance | |
| Max GPU Length | 338 mm |
| Max CPU Height | 170 mm |
| Max PSU Height | 140-180 mm |
| Miscellaneous | |
| Dust Filter | Bottom |
| Maximum Cable Management Space | 32 mm |
| Net Weight | 5.8 Kg |
| Warranty | 1 Years Brand Warranty |
